GBPC1508-BP

Overview

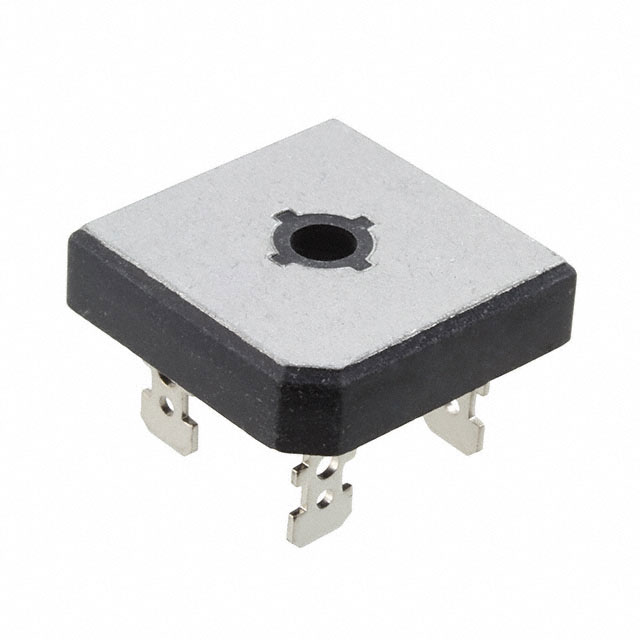

The GBPC1508-BP is a single-phase bridge rectifier manufactured by Micro Commercial Components (MCC). It features a 15 A average forward current and an 800 V repetitive peak reverse voltage. The device utilizes a glass passivated junction for enhanced stability and reliability under varying thermal conditions. Designed for through-hole mounting, it employs solder pin termination within the GBPC-4 package. Key electrical characteristics include a maximum non-repetitive surge current of 300 A and a typical forward voltage drop of 1.1 V at rated load. The component operates reliably across a wide temperature range from -55 °C to +150 °C.

Feature Summary

• Glass passivated junction construction ensures high reliability and stable performance in demanding environments.
• High surge current capability allows robust handling of transient overload conditions during startup or fault events.
• Through-hole solder pin termination facilitates secure mechanical attachment and reliable electrical connection on printed circuit boards.

Applications

• General-purpose AC to DC power supply conversion circuits
• Battery charging systems requiring medium current rectification
• Industrial control equipment power stages

Procurement Notes

Verify the specific part number against official MCC documentation to confirm compliance with required electrical ratings and package dimensions. Ensure that the procurement channel provides authentic components with traceable manufacturing data. Cross-reference technical specifications with the latest datasheet to validate performance parameters before integration into design projects.

Selection Notes

Select this component when a 15 A current rating and 800 V blocking voltage are required for through-hole applications. Consider the 1.1 V forward voltage drop for thermal management calculations. Verify that the PCB layout supports the GBPC-4 package footprint and solder pin spacing. Evaluate thermal dissipation requirements based on the expected operating ambient temperature and load profile.

Part Context

This component belongs to the GBPC series of single-phase bridge rectifiers from Micro Commercial Components. The series offers various current and voltage combinations to suit different power conversion needs. The GBPC1508-BP specifically addresses applications needing 15 A capacity with high voltage tolerance, utilizing standard through-hole technology for broad compatibility with existing manufacturing processes.

Replacement Considerations

Direct replacements must match the 15 A current rating, 800 V reverse voltage, and GBPC-4 package form factor. Verify equivalent forward voltage and surge current capabilities to ensure circuit performance remains unchanged. Consult manufacturer cross-reference lists for verified alternative part numbers with identical electrical and mechanical specifications.
