Product Detailed Parameters
- Description：BRIDGE RECT 1P 1KV 15A GBPC-M
- Series：-
- Mfr：Taiwan Semiconductor Corporation
- Package：Tray
- Diode Type：Single Phase
- Technology：Standard
- Voltage - Peak Reverse (Max)：1 kV
- Current - Average Rectified (Io)：15 A
- Voltage - Forward (Vf) (Max) @ If：1.1 V @ 7.5 A
- Current - Reverse Leakage @ Vr：5 µA @ 1000 V
- Operating Temperature：-55°C ~ 150°C (TJ)
- Mounting Type：QC Terminal
- Package / Case：4-Square, GBPC-M
- Supplier Device Package：GBPC-M
- Grade：-
- Qualification：-
Download product information
Overview

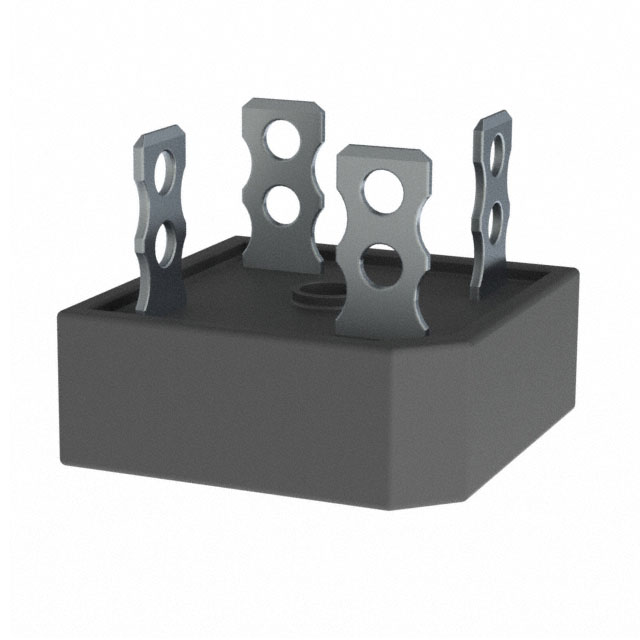

The GBPC1510M T0G is a single-phase standard bridge rectifier manufactured by Taiwan Semiconductor. It features an average forward current rating of 15A and a repetitive peak reverse voltage of 1000V. The device utilizes glass passivated chip junctions and incorporates an integrally molded heatsink for efficient thermal dissipation, achieving a typical junction-to-case thermal resistance of 1.5°C/W. Electrical specifications include a maximum forward voltage of 1.1V at 7.5A and a reverse leakage current of 5µA at rated voltage. The component operates within a junction temperature range of -55°C to +150°C and supports a peak forward surge current of 300A.
Feature Summary
- Glass passivated chip junction construction
- Integrally molded heatsink design
- High surge current capability
Applications
- Switching mode power supply (SMPS)
- AC to DC converter
Procurement Notes
Verify the specific suffix 'T0G' against the manufacturer's official documentation to confirm tape-and-reel packaging details. Confirm RoHS compliance status and UL recognition file number E-326243 during sourcing. Ensure the procurement channel provides valid datasheets matching version M2211 to guarantee accurate electrical parameters and mechanical dimensions.
Selection Notes
Select this component when a 15A current rating and 1000V blocking voltage are required in a compact form factor. The GBPC-M package variant offers terminal configurations parallel to the anode, suitable for specific board layouts. Evaluate thermal management requirements based on the 1.5°C/W junction-to-case resistance and derating curves for ambient temperatures exceeding 25°C.
Part Context
This part belongs to the GBPC15, 25, and 35 series of standard bridge rectifiers from Taiwan Semiconductor. The series covers current ratings from 15A to 35A and voltage ratings from 50V to 1000V. The GBPC1510M T0G specifically denotes the 15A, 1000V variant with the GBPC-M terminal configuration.
Replacement Considerations
Cross-reference with other GBPC1510 variants such as GBPC1510W or GBPC1510 depending on terminal style requirements. Verify that substitute components maintain identical 15A/1000V ratings and compatible mounting torque specifications.
