Product Detailed Parameters
- Description：BRIDGE RECT 1P 100V 50A GBPC40-M
- Series：-
- Mfr：Taiwan Semiconductor Corporation
- Package：Tray
- Diode Type：Single Phase
- Technology：Standard
- Voltage - Peak Reverse (Max)：100 V
- Current - Average Rectified (Io)：50 A
- Voltage - Forward (Vf) (Max) @ If：1.1 V @ 25 A
- Current - Reverse Leakage @ Vr：10 µA @ 100 V
- Operating Temperature：-55°C ~ 150°C (TJ)
- Mounting Type：QC Terminal
- Package / Case：4-Square, GBPC40-M
- Supplier Device Package：GBPC40-M
- Grade：-
- Qualification：-
Download product information
Overview

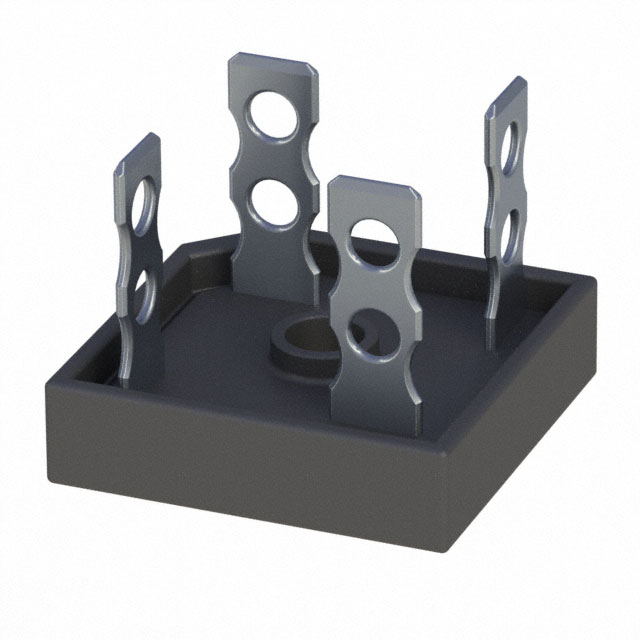

The GBPC5001M T0G is a single-phase bridge rectifier from the GBPC40, 50 Series by Taiwan Semiconductor. It features a 50A average forward current (IF) and a 100V repetitive peak reverse voltage (VRRM). The device utilizes glass passivated chip junctions and an integrally molded heatsink for thermal management. Electrical specifications include a maximum forward voltage of 1.1V at 25A and a reverse leakage current of 10µA at rated voltage. It supports a peak forward surge current of 400A and operates within a junction temperature range of -55°C to +150°C.
Feature Summary
- Glass passivated chip junction construction
- Integrally molded heatsink for low thermal resistance
- Universal four-way terminal options including snap-on and solder mounting
Applications
- Switching mode power supply (SMPS)
- AC to DC converter
Procurement Notes
Verify component authenticity through official manufacturer channels or authorized distributors. Confirm RoHS compliance status and UL recognition file number E-326243 during acquisition. Ensure storage conditions remain within specified limits to maintain material integrity before installation.
Selection Notes
Select this component when a 50A current rating and 100V blocking voltage are required. The GBPC40-M package variant offers parallel cathode terminals suitable for specific board layouts. Verify that the application environment stays within the -55°C to +150°C operating temperature range.
Part Context
This part belongs to the GBPC40, 50 Series, which covers ratings from 40A to 50A and voltages from 50V to 1000V. The 'M' suffix indicates the GBPC40-M package configuration with parallel terminals. The 'T0G' suffix denotes tape and reel packaging with RoHS compliance.
Replacement Considerations
Cross-reference with other GBPC5001 variants from different manufacturers ensuring identical IF, VRRM, and package dimensions. Verify terminal compatibility and thermal resistance values match system requirements.
FAQ
What is the maximum junction temperature for the GBPC5001M T0G?
The maximum junction temperature (TJ MAX) is +150°C.
Does the GBPC5001M T0G meet UL flammability standards?
Yes, the molding compound meets UL 94V-0 flammability rating.
What is the typical junction-to-case thermal resistance?
The typical junction-to-case thermal resistance (RθJC) is 1.5°C/W.
