GBU12K

Overview

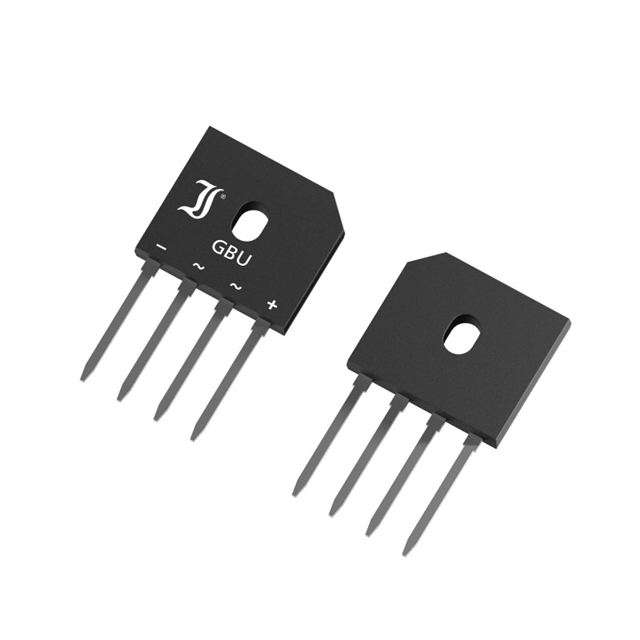

The GBU12K is a single-phase silicon diode bridge rectifier manufactured by Diotec Semiconductor, rated for an average forward current of 12 A and a peak reverse voltage of 800 V. It utilizes the GBU-4 through-hole package with solder pin termination. The device supports a junction temperature range from -50°C to +150°C and exhibits a typical forward voltage of 1 V at 12 A. Maximum ratings include a repetitive peak reverse voltage of 800 V, a non-repetitive peak forward surge current of 300 A at 60 Hz, and a maximum reverse leakage current of 5 µA.

Feature Summary

• High surge current capability designed to withstand transient overload conditions during power-up or fault events.
• Robust thermal management characterized by low thermal resistance values between the junction and ambient environment.
• Compliant packaging material classified as UL 94V-0 flammability rating for enhanced safety in standard applications.

Applications

• AC to DC conversion circuits requiring high voltage isolation
• Power supply units operating within industrial environments
• General purpose rectification in commercial electronic equipment

Procurement Notes

Verify component authenticity by cross-referencing the manufacturer's marking code against official datasheet specifications. Confirm that the ordering suffix matches the required voltage rating variant within the GBU12 series. Ensure compliance with RoHS and REACH directives relevant to your target market regulations before finalizing procurement orders.

Selection Notes

Select this component when circuit design requires an 800 V blocking voltage combined with a 12 A continuous current capacity. Evaluate the thermal resistance parameters to ensure adequate heat dissipation under maximum load conditions. Consider the recommended protective resistance value necessary to limit surge currents if connecting directly to large capacitive loads.

Part Context

This part belongs to the GBU12A through GBU12M series of single-phase bridge rectifiers. All variants share identical physical dimensions, current ratings, and thermal characteristics. The distinguishing factor across the series is the peak reverse voltage rating, which increases sequentially from 50 V to 1000 V depending on the specific alphanumeric suffix assigned to the model number.

Replacement Considerations

GBU12J (600 V), GBU12M (1000 V)
