GC3011-PQ

Overview

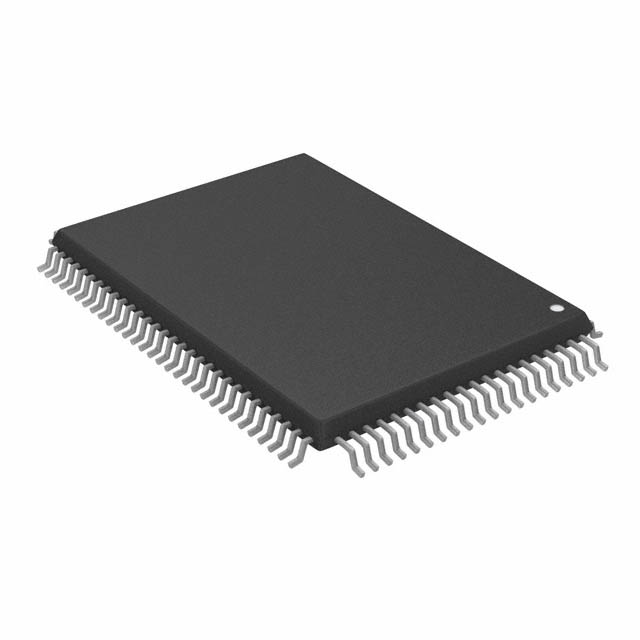

The GC3011-PQ is a digital resampler integrated circuit manufactured by Texas Instruments. It is designed for signal processing applications requiring frequency conversion or sampling rate adjustment in digital domains. The component is housed in a 100-pin Plastic Quad Flat Package (PQFP) with dimensions of 20x14 mm. This surface-mount device facilitates integration into systems needing precise digital signal manipulation, serving as a peripheral IC for digital filtering and resampling tasks within broader electronic architectures.

Feature Summary

• Performs digital resampling operations for signal processing
• Housed in a 100-pin PQFP surface-mount package
• Functions as a digital filter peripheral

Applications

• Digital signal processing systems
• Frequency conversion circuits
• Sampling rate adjustment modules

Procurement Notes

Verify the RoHS compliance status carefully, as sources indicate non-compliance. Confirm the package type is strictly 100-QFP/PQFP. Ensure the supplier provides authentic Texas Instruments documentation matching the GC3011-PQ part number to avoid counterfeit components. Check for any specific handling requirements associated with the PQFP form factor during assembly.

Selection Notes

Select this component when a dedicated digital resampler function is required within a DSP architecture. The 100-pin PQFP package dictates board layout constraints due to its size and pin count. Consider thermal dissipation capabilities inherent to the plastic quad flat package design. Verify compatibility with existing digital signal processing workflows that necessitate hardware-level resampling rather than software-based solutions.

Part Context

This part belongs to the GC30xx series of digital resamplers from Texas Instruments. It shares functional similarities with variants like the GC3011A but differs in specific implementation details. The series targets RF and wireless applications requiring precise digital signal manipulation. The PQFP packaging standardizes its physical integration across various industrial and communication equipment designs.

Replacement Considerations

The GC3011A is a documented variant within the same product family. Verify if the GC3011A meets all electrical and pinout requirements before substitution. No other direct substitutes are confirmed in public documentation.
