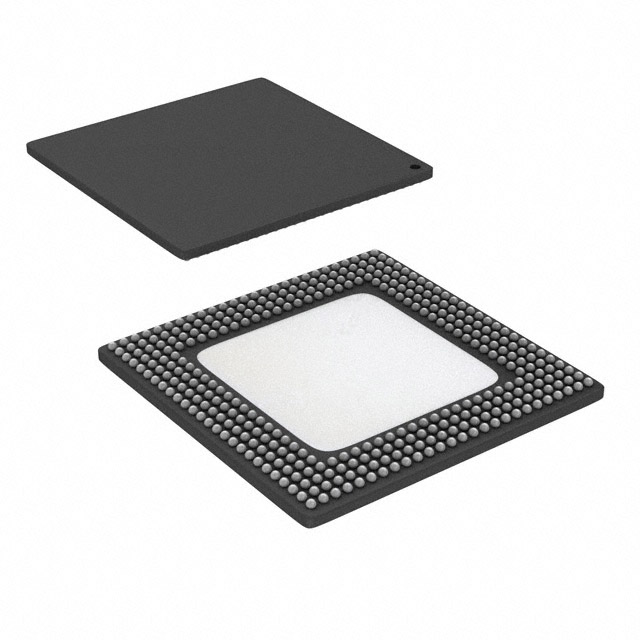

GC5325IZND

$57.98

Description：IC WB DGTL TX PROCESSOR 352-BGA
Series：-
Mfr：Texas Instruments
Package：Tray,Tray

SKU:94f8e300f2ad Category: RF Misc ICs and Modules Brand: Texas Instruments

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IC WB DGTL TX PROCESSOR 352-BGA
Series：-
Mfr：Texas Instruments
Package：Tray,Tray
Function：Predistortion Transmit Processor
Frequency：140MHz
RF Type：-
Secondary Attributes：Integrated CFR and DPD Functions
Mounting Type：Surface Mount
Package / Case：352-LBGA
Supplier Device Package：352-BGA (27x27)
Grade：-
Qualification：-

Download product information

GC5325IZND

Overview

The GC5325IZND is a wideband digital predistortion transmit processor manufactured by Texas Instruments. It integrates Code Domain Predistortion (CFR) and Digital Predistortion (DPD) functions to enhance signal quality in wireless applications. The device operates within a frequency range of 140MHz and utilizes Silicon technology. It is housed in a 352-BGA package with dimensions of 27x27 mm. The component supports surface mount mounting and functions within a temperature range of -40 to 85 degrees Celsius, with a maximum supply voltage of 3.45V.

Feature Summary

Integrates Code Domain Predistortion (CFR) functionality for signal optimization
Includes Digital Predistortion (DPD) capabilities to linearize transmit signals
Designed as a wideband transmit processor for RF wireless applications

Applications

Wireless communication systems requiring signal linearity
RF transmitter chains utilizing digital predistortion techniques
Base station equipment operating in wideband frequency ranges

Procurement Notes

Verify current availability status as the component may be discontinued or subject to limited supply. Confirm package integrity and RoHS compliance upon receipt. Ensure compatibility with existing PCB layouts due to the specific BGA-352 footprint requirements. Check for obsolescence notices from the manufacturer before finalizing design implementations.

Selection Notes

Select this component for designs requiring integrated CFR and DPD processing in a single IC. Consider the 352-BGA package size and thermal characteristics during layout. Evaluate the 140MHz operational bandwidth against system requirements. Assess the -40 to 85 degrees Celsius operating range for environmental suitability.

Part Context

This part belongs to the GC5325 series of RF wireless miscellaneous components. It is categorized under wireless and RF integrated circuits. The device represents a specialized solution for transmit chain linearization, distinct from general-purpose RF amplifiers or mixers.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult Texas Instruments directly for potential end-of-life alternatives or next-generation replacements.
