GC5337IZEV

Overview

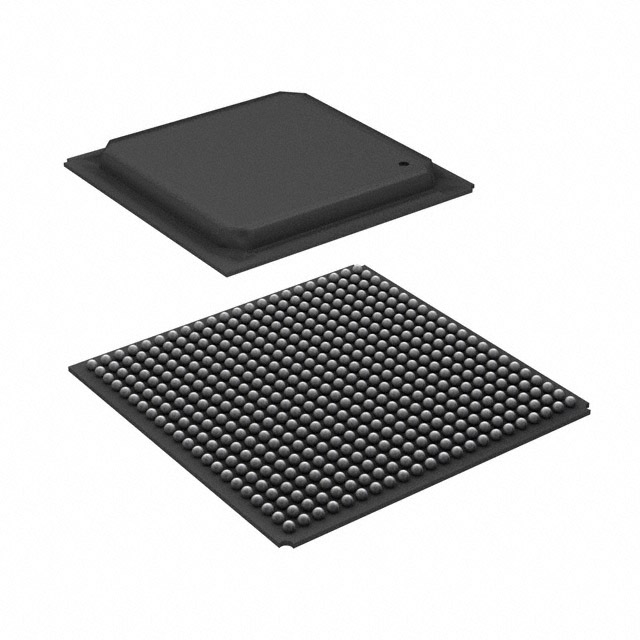

The GC5337IZEV is a digital signal processor IC designed for wideband radio applications, specifically supporting LTE, WiMAX, and WLL standards. It integrates transmit and receive functions within a single component. The device operates at a frequency of 370 MHz and is housed in a 484-ball BGA package measuring 23x23 mm. This integrated solution facilitates multi-antenna configurations for broadband wireless systems.

Feature Summary

• Integrates digital signal processing with wideband transmit and receive capabilities
• Supports multiple cellular and wireless communication standards including LTE and WiMAX
• Designed for multi-antenna system implementations

Applications

• LTE base station transceivers
• WiMAX infrastructure equipment
• Wireless Local Loop (WLL) systems

Procurement Notes

Verify the specific suffix 'IZEV' to ensure compatibility with required operating temperature ranges and package specifications. Confirm that the 484-BGA footprint matches the target PCB design. Check current product status as availability may be limited due to end-of-life classifications.

Selection Notes

Select this component when a combined digital signal processor and RF front-end solution is required for wideband applications. Ensure the design supports the necessary thermal dissipation for the BGA package. Consider the integration benefits over discrete solutions for space-constrained multi-antenna architectures.

Part Context

This part belongs to Texas Instruments' portfolio of RF miscellaneous ICs and modules. It serves as a specialized solution for broadband wireless infrastructure, replacing complex discrete signal chains with a unified digital processing unit tailored for specific cellular protocols.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify if the GC5330IZEV or other variants in the series offer compatible functionality if direct substitution is required.
