GCPZ10

Overview

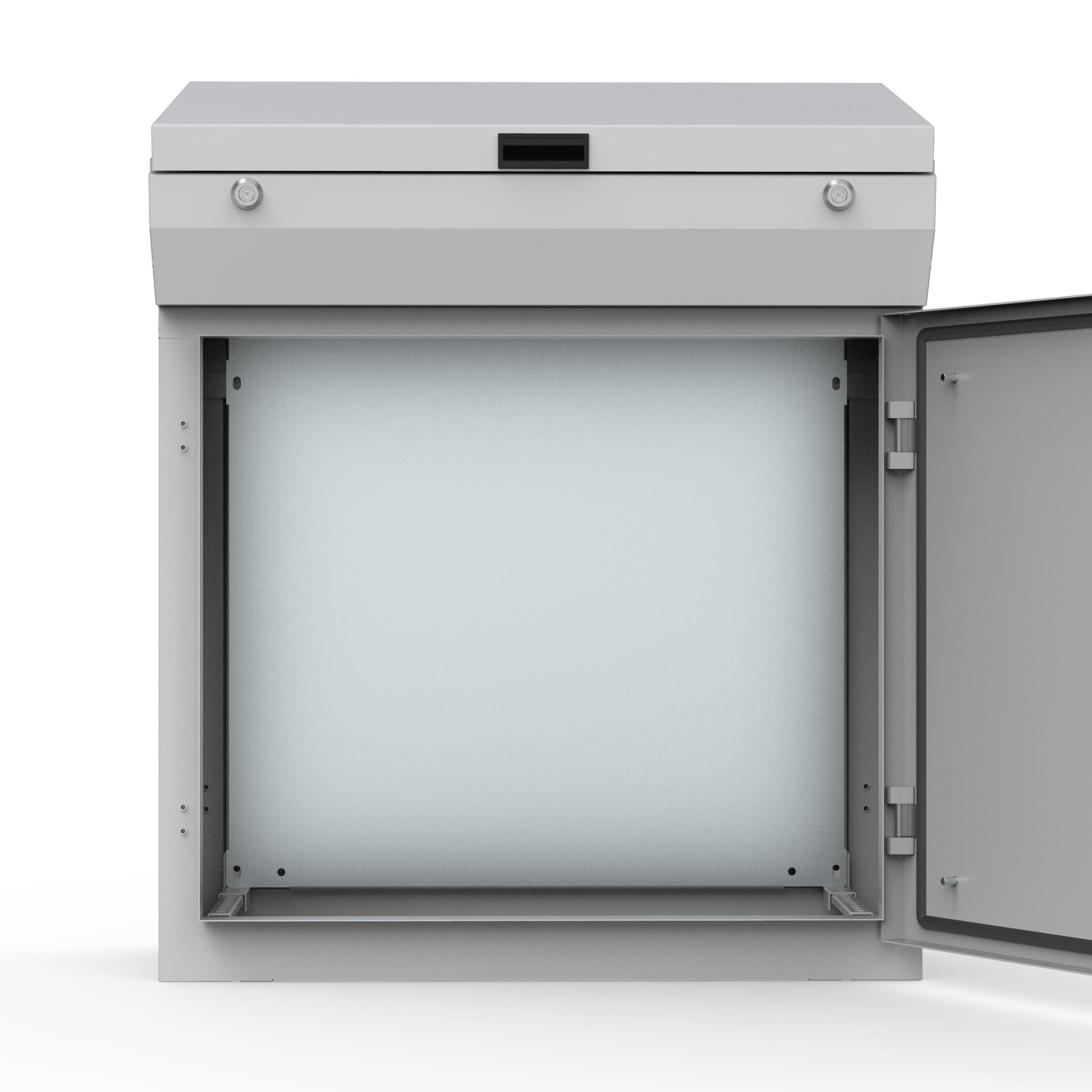

The GCPZ10 is a mounting plate manufactured by Hoffman Enclosures, Inc., designed for industrial enclosure applications. Constructed from galvanized mild steel, it provides a structural back plate solution. The component measures 790 mm in height and 899 mm in width, with a thickness of approximately 24 mm (0.94 inches). It features a perforated surface design to facilitate cable routing and ventilation. This part serves as a standardized IEC-compatible back plate for assembling electrical enclosures.

Feature Summary

• Constructed from galvanized mild steel for corrosion resistance
• Perforated surface design supports cable management and airflow
• Standardized dimensions compatible with IEC enclosure frameworks

Applications

• Industrial electrical enclosure assembly
• Control panel construction
• IEC standard rack mounting systems

Procurement Notes

Verify the specific material grade and finish requirements against project specifications before ordering. Confirm dimensional compatibility with the target enclosure frame, particularly regarding hole patterns and overall footprint. Ensure that the galvanized coating meets environmental exposure standards for the intended installation location. Cross-reference the part number with official manufacturer documentation to confirm current availability and lead times.

Selection Notes

Select this component when a durable, corrosion-resistant back plate is required for standard-sized enclosures. The galvanized steel construction offers a balance of strength and cost-effectiveness for indoor or protected outdoor environments. Consider the perforated design if internal cable routing or passive cooling is necessary. Verify that the 790x899 mm dimensions align with the mechanical constraints of the final assembly.

Part Context

This mounting plate belongs to the Hoffman Enclosures product line, which specializes in metal enclosures and accessories for electrical and electronic equipment. The GCPZ10 functions as a core structural element within larger enclosure systems, providing a stable surface for component mounting. It is typically used in conjunction with frames, doors, and bases to create complete protective housing solutions for industrial control applications.

Replacement Considerations

No direct substitute part numbers are publicly confirmed for this specific model. When replacing, ensure the new component matches the 790 mm height, 899 mm width, and galvanized steel material properties. Verify that the perforation pattern and mounting hole locations are identical to maintain compatibility with existing hardware.
