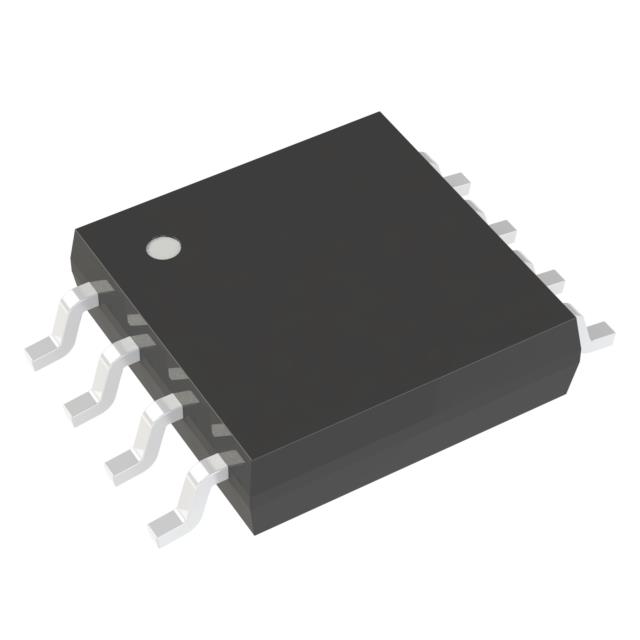

GD25B16CS2GR is listed in the Memory IC range at ChipApex. The manufacturer field lists GigaDevice Semiconductor (HK) Limited. Its product description is IC FLASH 16MBIT SPI/QUAD 8SOP. Review the specifications below when checking this part for your BOM.
Memory IC specifications for GD25B16CS2GR
- Description：IC FLASH 16MBIT SPI/QUAD 8SOP
- Series：GD25B
- Mfr：GigaDevice Semiconductor (HK) Limited
- Package：Tape & Reel (TR)
- Memory Type：Non-Volatile
- Memory Format：FLASH
- Technology：FLASH - NOR (SLC)
- Memory Size：16Mbit
- Memory Organization：2M x 8
- Memory Interface：SPI - Quad I/O
- Clock Frequency：-
- Write Cycle Time - Word, Page：-
- Voltage - Supply：2.7V ~ 3.6V
- Operating Temperature：-40°C ~ 105°C (TA)
- Mounting Type：Surface Mount
- Package / Case：8-SOIC (0.209", 5.30mm Width)
- Supplier Device Package：8-SOP
- Access Time：-
- Grade：-
- Qualification：-
Memory IC datasheet and documents for GD25B16CS2GR
Memory IC Overview
The GD25B16CS2GR is a 16 Mbit SPI NOR Flash memory IC manufactured by GigaDevice. It operates within a supply voltage range of 2.7 V to 3.6 V and supports a maximum clock frequency of 166 MHz. The device utilizes an 8-SOP surface-mount package and functions across an industrial temperature range from -40°C to +105°C. It features Quad I/O support for high-speed data transfer.
Memory IC Feature Summary
- Supports Quad I/O interface for enhanced data throughput
- Operates reliably in extended industrial temperature environments
- Provides non-volatile storage for firmware and configuration data
Memory IC Applications
- Firmware storage in embedded systems
- Boot code retention
- Configuration data archiving
Memory IC Procurement Notes
Verify the specific datasheet version for the GD25B16CS2GR to confirm all electrical characteristics and mechanical dimensions. Ensure compatibility with system voltage levels and interface requirements before integration. Cross-reference official manufacturer documentation for any updates regarding pin configurations or operational limits.
Memory IC Selection Notes
Select this component when a 16 Mbit capacity is required with Quad I/O capabilities. It is suitable for applications demanding operation up to 166 MHz within the specified voltage window. Consider the 8-SOP package constraints and industrial temperature rating during PCB layout and thermal management planning.
Memory IC Part Context
This part belongs to the GD25B series of SPI NOR Flash memories from GigaDevice. The series targets diverse market segments including consumer electronics and automotive systems, offering scalability and reliability. The GD25B16CS2GR specifically addresses needs for compact, high-performance code storage solutions.
Memory IC Replacement Considerations
Check for compatible parts within the GD25B family that match the 16 Mbit density and 8-SOP package. Verify if alternative suffixes indicate different temperature ranges or packaging options while maintaining functional equivalence.
