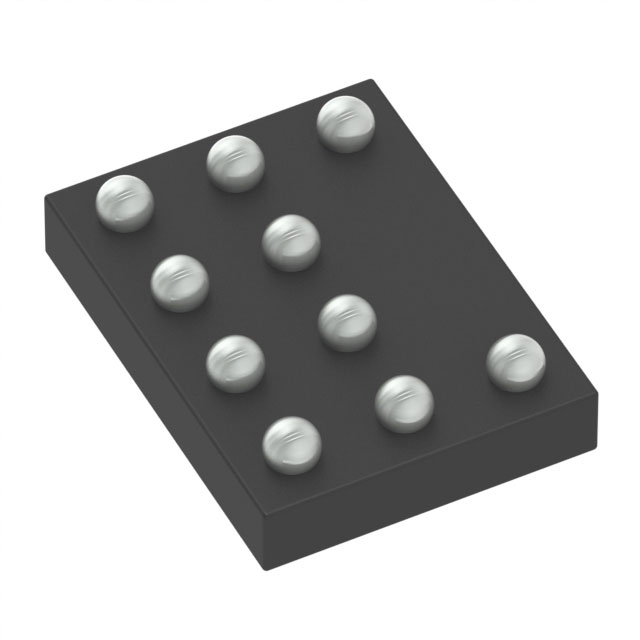

GD25LQ32DLIGR is listed in the Memory IC range at ChipApex. The manufacturer field lists GigaDevice Semiconductor (HK) Limited. Its product description is IC FLASH 32MBIT SPI/QUAD 10WLCSP. Review the specifications below when checking this part for your BOM.
Memory IC specifications for GD25LQ32DLIGR
- Description：IC FLASH 32MBIT SPI/QUAD 10WLCSP
- Series：-
- Mfr：GigaDevice Semiconductor (HK) Limited
- Package：Tape & Reel (TR),Cut Tape (CT)
- Memory Type：Non-Volatile
- Memory Format：FLASH
- Technology：FLASH - NOR
- Memory Size：32Mbit
- Memory Organization：4M x 8
- Memory Interface：SPI - Quad I/O
- Clock Frequency：120 MHz
- Write Cycle Time - Word, Page：2.4ms
- Voltage - Supply：1.65V ~ 2V
- Operating Temperature：-40°C ~ 85°C (TA)
- Mounting Type：Surface Mount
- Package / Case：10-XFBGA, WLCSP
- Supplier Device Package：10-WLCSP
- Access Time：-
- Grade：-
- Qualification：-
Memory IC datasheet and documents for GD25LQ32DLIGR
Memory IC Overview
The GD25LQ32DLIGR is a 32 Mbit NOR flash memory device manufactured by GigaDevice. It features a 4 M x 8 organization and supports SPI Quad I/O interfaces with clock frequencies up to 133 MHz. The component operates within a supply voltage range of 1.65 V to 2 V and functions across an industrial temperature range of -40°C to +85°C. It is housed in a compact 10-WLCSP package designed for surface mount technology.
Memory IC Feature Summary
- Supports high-speed SPI Quad I/O data transfer modes
- Operates at low voltage levels suitable for portable applications
- Provides non-volatile storage with uniform sector architecture
Memory IC Applications
- Code storage in embedded systems
- Data logging in industrial devices
- Firmware storage in consumer electronics
Memory IC Procurement Notes
Verify the current lifecycle status, as this part is marked as Not Recommended for New Designs (NRND). Confirm availability through authorized distributors, noting potential minimum order quantities or limited stock due to supply constraints. Ensure compatibility with existing board designs before procurement.
Memory IC Selection Notes
Select this component when a small form factor is required alongside standard SPI interface compatibility. The 10-WLCSP package offers space efficiency compared to larger SOP packages. Verify that the system power supply strictly adheres to the 1.65 V to 2 V operating range to ensure reliable performance.
Memory IC Part Context
This device belongs to the GD25LQ series of low-voltage SPI NOR flash memories from GigaDevice. It shares architectural similarities with other members like the GD25LQ32DWIGR but differs in packaging. The series is designed for applications requiring moderate density with a focus on reduced power consumption and compact footprint.
Memory IC Replacement Considerations
Check for pin-compatible alternatives within the same family, such as GD25LQ32DWIGR, while accounting for package differences. Verify if newer revisions of the GD25LQ32 series are available as direct replacements, ensuring interface and voltage specifications remain identical.
