GD25Q32CVIGR

Memory IC Overview

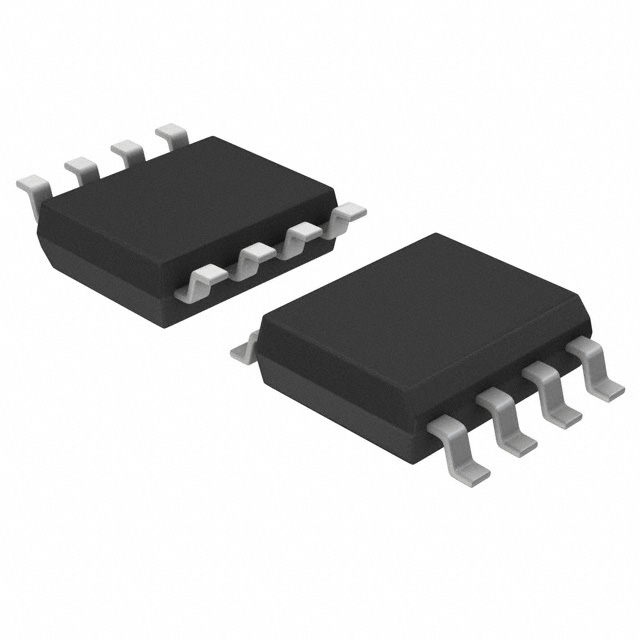

The GD25Q32CVIGR is a 32M-bit (4M x 8) NOR flash memory manufactured by GigaDevice. It operates on a single 2.7V to 3.6V power supply and features a VSOP-8 package with a 208mil footprint. The device supports standard, dual, and quad SPI interfaces with a maximum clock frequency of 120 MHz. It provides uniform sector architecture with 4K-byte sectors and 32/64K-byte blocks. Operating temperature range is -40°C to +85°C.

Memory IC Feature Summary

• Supports standard, dual, and quad serial peripheral interface modes for flexible data transfer rates.
• Includes software and hardware write protection mechanisms via status register bits and the WP# pin.
• Features advanced security capabilities including a unique ID and programmable security registers.
• Allows execute-in-place operation with continuous read support.

Memory IC Applications

• Consumer electronics firmware storage
• Industrial control system code storage
• Embedded applications requiring non-volatile data retention

Memory IC Procurement Notes

Verify the specific ordering suffix 'VIGR' corresponds to the VSOP-8 208mil package and tape-and-reel delivery format. Confirm that the industrial temperature grade (-40°C to +85°C) meets the operational requirements of the target environment. Ensure compatibility with the 3.3V uniform sector voltage specifications during integration.

Memory IC Selection Notes

Select this component when a 32M-bit capacity is required in a compact VSOP-8 package. It is suitable for designs needing high-speed quad SPI access up to 120 MHz. Consider the industrial temperature range if the application operates in varying environmental conditions. Verify that the board layout accommodates the 208mil package dimensions.

Memory IC Part Context

This part belongs to the GD25Q32C series of 3.3V uniform sector dual and quad serial flash memories. The series offers various package options including SOP, WSON, USON, and TFBGA. The GD25Q32CVIGR specifically denotes the VSOP-8 variant within this family, sharing core electrical and command set characteristics with other packages in the series.

Memory IC Replacement Considerations

GD25Q32CWIGR: Identical electrical specifications but housed in an 8-WSON (5x6mm) package instead of VSOP-8. Pinout remains compatible for direct replacement if PCB space allows for the different footprint.
