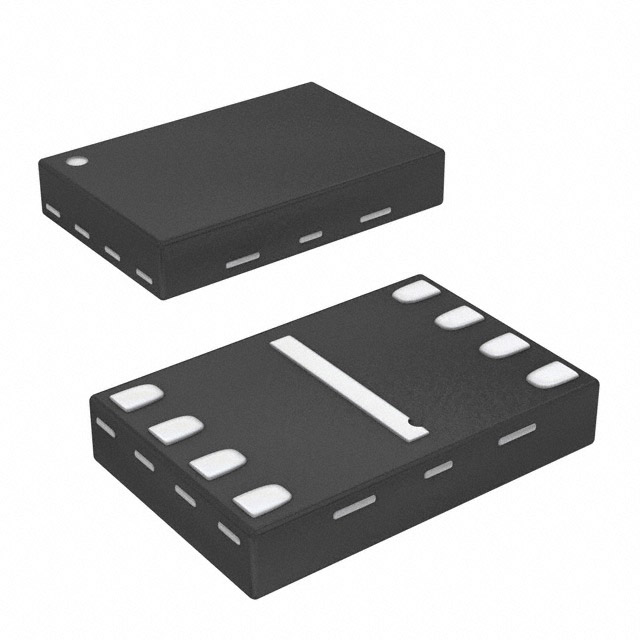

GD25Q80CEIGR

$0.51

Description：IC FLASH 8MBIT SPI/QUAD 8USON
Series：-
Mfr：GigaDevice Semiconductor (HK) Limited
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:6816ed48696b Category: Memory IC Brand: GigaDevice Semiconductor (HK) Limited

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

GD25Q80CEIGR is listed in the Memory IC range at ChipApex. The manufacturer field lists GigaDevice Semiconductor (HK) Limited. Its product description is IC FLASH 8MBIT SPI/QUAD 8USON. Review the specifications below when checking this part for your BOM.

Memory IC specifications for GD25Q80CEIGR

Description：IC FLASH 8MBIT SPI/QUAD 8USON
Series：-
Mfr：GigaDevice Semiconductor (HK) Limited
Package：Tape & Reel (TR),Cut Tape (CT)
Memory Type：Non-Volatile
Memory Format：FLASH
Technology：FLASH - NOR
Memory Size：8Mbit
Memory Organization：1M x 8
Memory Interface：SPI - Quad I/O
Clock Frequency：120 MHz
Write Cycle Time - Word, Page：50µs, 2.4ms
Voltage - Supply：2.7V ~ 3.6V
Operating Temperature：-40°C ~ 85°C (TA)
Mounting Type：Surface Mount
Package / Case：8-XFDFN Exposed Pad
Supplier Device Package：8-USON (2x3)
Access Time：-
Grade：-
Qualification：-

Memory IC datasheet and documents for GD25Q80CEIGR

GD25Q80CEIGR

Memory IC Overview

The GD25Q80CEIGR is an 8M-bit (1M x 8) NOR flash memory manufactured by GigaDevice. It operates on a single 3.3V supply within a 2.7V to 3.6V range and utilizes an 8-lead USON package measuring 3x2mm with a thickness of 0.45mm. The device supports standard, dual, and quad SPI interfaces with a maximum clock frequency of 120MHz. It features uniform sector architecture with 4K-byte sectors and 32/64K-byte blocks. Operating temperature ranges from -40°C to +85°C.

Memory IC Feature Summary

Supports standard, dual, and quad serial peripheral interface protocols for flexible data transfer rates.
Includes hardware and software write protection mechanisms via status register bits and dedicated pins.
Features advanced security capabilities including unique identification and programmable security registers.
Provides execute-in-place functionality allowing direct code execution from the memory device.

Memory IC Applications

Firmware storage in embedded systems
Code execution in place applications
Data logging and configuration storage

Memory IC Procurement Notes

Verify component authenticity through official manufacturer channels or authorized distributors. Confirm that the specific ordering suffix matches the required package type and temperature grade. Check current lifecycle status as components may be subject to discontinuation notices. Ensure compliance with relevant environmental regulations such as RoHS standards before integration into final products.

Memory IC Selection Notes

Select this component when a compact surface-mount solution is required for 8M-bit non-volatile storage. The USON package suits designs with strict space constraints. Verify that the host controller supports the necessary SPI modes, including Quad I/O if high-speed read operations are required. Ensure power supply stability within the specified voltage range to maintain reliable operation.

Memory IC Part Context

This part belongs to the GD25Q80C series of 3.3V uniform sector serial flash memories. The series offers various package options including SOP, WSON, and USON formats. The CEIGR designation specifically indicates the USON8 package variant designed for industrial temperature ranges. It shares core architectural features with other members of the family while differing in physical footprint.
