GD25Q80CWIGR

Memory IC Overview

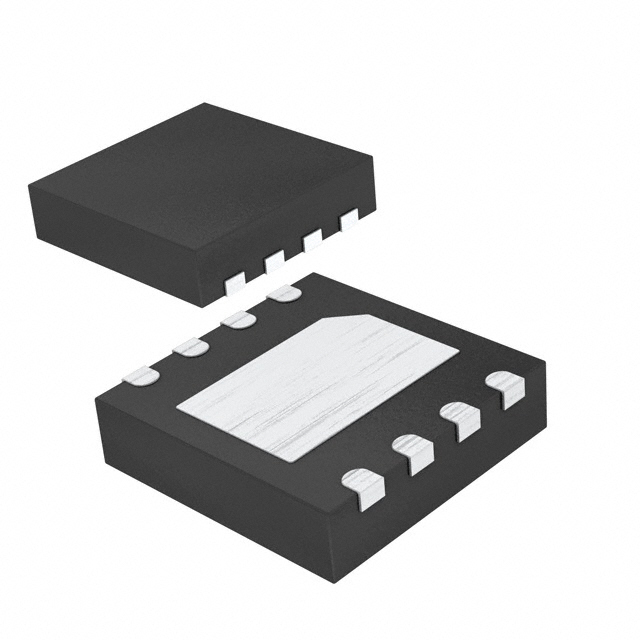

The GD25Q80CWIGR is an 8M-bit (1M x 8) SPI NOR flash memory manufactured by GigaDevice. It operates on a single 3.3V power supply with a voltage range of 2.7V to 3.6V. The device supports standard, dual, and quad SPI interfaces with a maximum clock frequency of 120MHz. It features uniform sector architecture with 4K-byte sectors and 32/64K-byte blocks. The component is housed in a WSON-8 package measuring 6x5mm and is rated for industrial temperatures from -40°C to +85°C.

Memory IC Feature Summary

• Supports standard, dual, and quad SPI communication modes for flexible data transfer rates.
• Includes hardware and software write protection mechanisms via WP# pin and status register bits.
• Features advanced security capabilities including unique identification and programmable security registers.
• Enables execute-in-place (XIP) operation for direct code execution from the memory.

Memory IC Applications

• Consumer electronics firmware storage
• Industrial control system code storage
• Embedded systems requiring non-volatile data retention

Memory IC Procurement Notes

Verify the specific suffix 'WIGR' confirms the WSON-8 6x5mm package and industrial temperature grade (-40°C to +85°C). Confirm the datasheet revision matches the required command set and electrical characteristics. Ensure design compatibility with the 2.7V to 3.6V operating voltage range and 120MHz clock speed limitations.

Memory IC Selection Notes

Select this component when an 8M-bit capacity is required with uniform sector erase architecture. It is suitable for designs needing high-speed read performance up to 120MHz and support for dual/quad I/O operations. Consider the WSON-8 package constraints and industrial temperature rating during PCB layout and thermal management planning.

Memory IC Part Context

This part belongs to the GD25Q80C series of 3.3V uniform sector serial flash memories. The series offers various package options including SOP, USON, and WSON formats. The GD25Q80C provides reliable data retention and endurance, targeting applications that require robust non-volatile storage solutions with flexible interface options.

Memory IC Replacement Considerations

GD25Q80CNIGR

Memory IC FAQ

What is the difference between Dual SPI and Quad SPI modes?

Dual SPI uses two bidirectional I/O pins (IO0 and IO1) to double the data transfer rate, while Quad SPI utilizes four I/O pins (IO0-IO3) to quadruple the rate. Quad mode requires setting the QE bit in the status register.

How is the memory protected against unintended writes?

Protection is achieved through software commands (Block Protect bits in the Status Register) and hardware control via the WP# pin. The WP# pin can lock the status register or protect specific memory regions depending on configuration.
