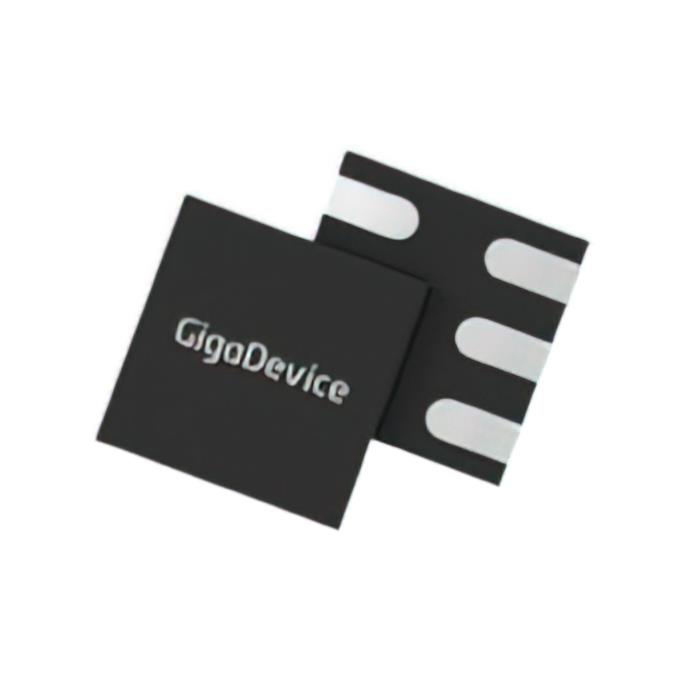

GD25WD80EEIGR is listed in the Memory IC range at ChipApex. The manufacturer field lists GigaDevice Semiconductor (HK) Limited. Its product description is IC FLASH 8MBIT SPI/DUAL 8USON. Review the specifications below when checking this part for your BOM.
Memory IC specifications for GD25WD80EEIGR
- Description：IC FLASH 8MBIT SPI/DUAL 8USON
- Series：GD25WD
- Mfr：GigaDevice Semiconductor (HK) Limited
- Package：Tape & Reel (TR)
- Memory Type：Non-Volatile
- Memory Format：FLASH
- Technology：FLASH - NOR (SLC)
- Memory Size：8Mbit
- Memory Organization：1M x 8
- Memory Interface：SPI - Dual I/O
- Clock Frequency：104 MHz
- Write Cycle Time - Word, Page：100µs, 6ms
- Voltage - Supply：1.65V ~ 3.6V
- Operating Temperature：-40°C ~ 85°C (TA)
- Mounting Type：Surface Mount
- Package / Case：8-XFDFN Exposed Pad
- Supplier Device Package：8-USON (3x2)
- Access Time：6 ns
- Grade：-
- Qualification：-
Memory IC datasheet and documents for GD25WD80EEIGR
Memory IC Overview
The GD25WD80EEIGR is an 8 Mbit NOR flash memory device manufactured by GigaDevice. It features a USON-8 surface-mount package and supports Dual SPI and standard SPI interfaces with a maximum clock frequency of 104 MHz. The storage organization is 1 M x 8 bits with an 8-bit data bus width. Operating voltage ranges from 1.65 V to 3.6 V, while the active read current is limited to a maximum of 6 mA. The component operates within a temperature range of -40°C to +85°C.
Memory IC Feature Summary
- Supports Dual SPI and standard SPI interface protocols for flexible system integration.
- Operates on a wide supply voltage range from 1.65 V to 3.6 V.
- Provides synchronous timing for reliable data transfer operations.
Memory IC Applications
- Consumer electronics code storage
- Industrial control systems
- Internet of Things (IoT) devices
Memory IC Procurement Notes
Verify the specific suffix 'EEIGR' against official datasheets to confirm package type and tape-and-reel specifications. Confirm RoHS compliance status through manufacturer documentation before procurement. Ensure availability matches project requirements as distribution channels may report restricted supply or discontinuation statuses that differ from manufacturing schedules.
Memory IC Selection Notes
Select this component when a compact USON-8 footprint is required alongside Dual SPI support. The 1.65 V minimum operating voltage makes it suitable for low-power applications compared to traditional 3V parts. Verify that the 104 MHz speed meets system timing constraints and that the industrial temperature range aligns with environmental conditions.
Memory IC Part Context
This part belongs to the GD25WD series of SPI NOR flash memories designed for high performance and low power consumption. The series targets diverse market segments including consumer electronics and IoT, offering scalable densities and various package options to meet different application size and cost requirements.
Memory IC Replacement Considerations
GD25WD80ETIGR is listed as a parameter-equivalent alternative in distributor records.
