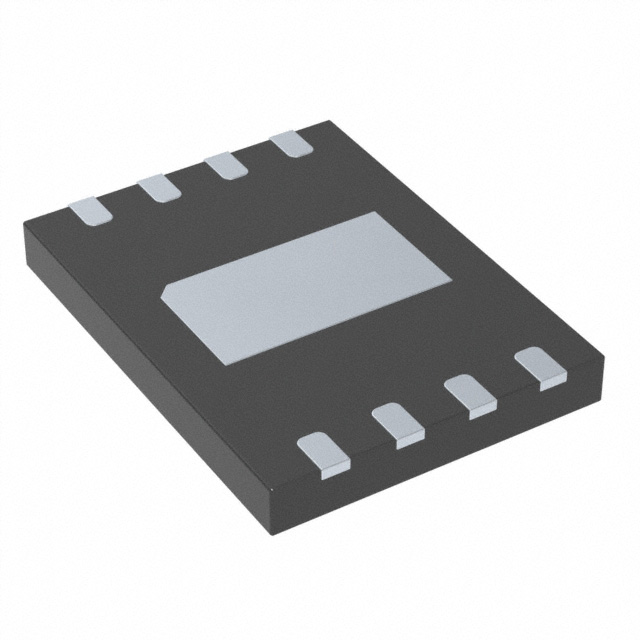

GD5F2GQ4UF9IGR is listed in the Memory IC range at ChipApex. The manufacturer field lists GigaDevice Semiconductor (HK) Limited. Its product description is IC FLASH 2GBIT SPI/QUAD I/O 8LGA. Review the specifications below when checking this part for your BOM.
Memory IC specifications for GD5F2GQ4UF9IGR
- Description：IC FLASH 2GBIT SPI/QUAD I/O 8LGA
- Series：-
- Mfr：GigaDevice Semiconductor (HK) Limited
- Package：Tape & Reel (TR)
- Memory Type：Non-Volatile
- Memory Format：FLASH
- Technology：FLASH - NAND
- Memory Size：2Gbit
- Memory Organization：256M x 8
- Memory Interface：SPI - Quad I/O
- Clock Frequency：120 MHz
- Write Cycle Time - Word, Page：700µs
- Voltage - Supply：2.7V ~ 3.6V
- Operating Temperature：-40°C ~ 85°C (TA)
- Mounting Type：Surface Mount
- Package / Case：8-VLGA Exposed Pad
- Supplier Device Package：8-LGA (6x8)
- Access Time：-
- Grade：-
- Qualification：-
Memory IC datasheet and documents for GD5F2GQ4UF9IGR
Memory IC Overview
The GD5F2GQ4UF9IGR is a non-volatile NAND flash memory integrated circuit manufactured by Gigadevice Electronics Singapore PTE.LTD. It features a storage capacity of 2Gb with an organization of 256M x 8. The device utilizes a SPI - Quad I/O interface and operates at a clock frequency of 120 MHz. It is housed in an 8-LGA(6x8) package with surface mount installation. The supply voltage range is 2.7V to 3.6V, and the operating temperature spans from -40°C to 85°C (TA). The write cycle time for word or page operations is 700µs.
Memory IC Feature Summary
- Non-volatile NAND flash technology for persistent data retention
- SPI Quad I/O interface supporting high-speed data transfer
- Industrial temperature range operation capability
Memory IC Applications
- Embedded systems requiring reliable non-volatile storage
- Consumer electronics devices
- Industrial control applications
Memory IC Procurement Notes
Verify component authenticity through authorized distributors as this part is obsolete. Confirm replacement compatibility with manufacturer-recommended alternatives like GD5F2GM7REYIGY. Check RoHS compliance status and moisture sensitivity level before procurement. Ensure packaging specifications match design requirements.
Memory IC Selection Notes
Consider the 2.7V to 3.6V supply voltage requirement when designing power circuits. Evaluate the 8-LGA package dimensions for PCB layout constraints. Assess the 120 MHz clock speed against system performance needs. Verify thermal management capabilities for the specified operating temperature range.
Memory IC Part Context
This component belongs to the GD5F Series SPI NAND Flash Memory family produced by Gigadevice Semiconductor. It represents a specific variant within the broader product line designed for embedded storage applications. The series emphasizes reliability and performance for various electronic devices.
Memory IC Replacement Considerations
Manufacturer recommends GD5F2GM7REYIGY as a direct substitute. Verify electrical parameters and pin compatibility before implementation.
Memory IC FAQ
What is the current manufacturing status of this component?
The GD5F2GQ4UF9IGR is obsolete and no longer in production.
Does this component support low-voltage operation?
No, it requires a supply voltage between 2.7V and 3.6V.
