GEC03DABN-M30

Headers, Male Pins Overview

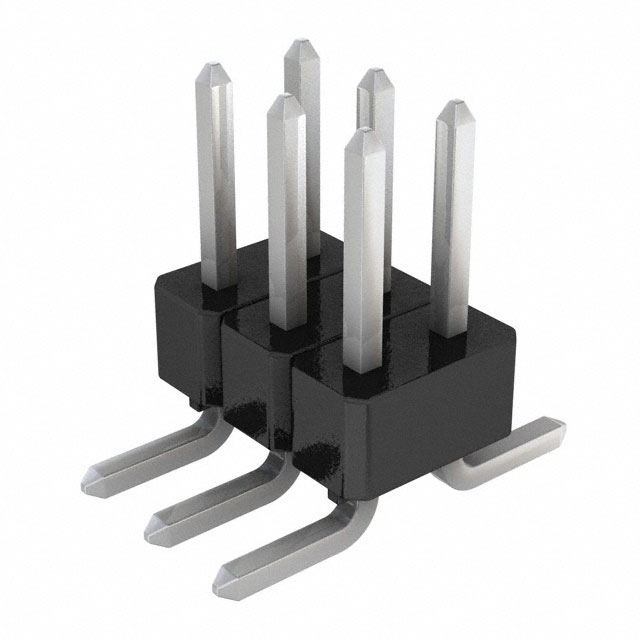

The GEC03DABN-M30 is a surface mount male header connector manufactured by Sullins Connector Solutions. It features a single row of six positions with a 2.54mm (0.100 inch) pitch. The connector utilizes phosphor bronze contacts with tin plating and a nylon 9T insulator rated UL94 V-0. Designed for board-to-board or cable applications, it supports a maximum current of 3A and operates within a temperature range of -65°C to 150°C.

Headers, Male Pins Feature Summary

• Surface mount termination for automated PCB assembly
• High-temperature resistant nylon 9T insulation material
• Unshrouded breakaway design for flexible routing

Headers, Male Pins Applications

• Board-to-board interconnections
• Cable-to-board connections
• High-temperature electronic assemblies

Headers, Male Pins Procurement Notes

Verify the specific pin count and row configuration against the official datasheet before procurement, as suffix variations may alter physical dimensions. Confirm that the tin-plated contact finish meets the environmental requirements for the intended application. Ensure the surface mount footprint matches the recommended PCB layout provided in the manufacturer's documentation to guarantee reliable solder joint integrity during reflow processes.

Headers, Male Pins Selection Notes

Select this component when a low-profile, high-temperature header is required for dense board layouts. The 2.54mm pitch offers standard compatibility with mating connectors. Consider the unshrouded design if space constraints prevent the use of shrouded alternatives. Verify that the 3A current rating aligns with the circuit load requirements and that the operating temperature range covers the expected environmental conditions of the final product.

Headers, Male Pins Part Context

This part belongs to the GxCxxSABN-M30 series of high-temperature headers and card edge connectors from Sullins Connector Solutions. The series is characterized by its ability to withstand elevated temperatures due to the use of specialized polymer materials. These connectors are engineered for reliability in demanding industrial and commercial environments where standard plastic components might fail.

Headers, Male Pins Replacement Considerations

Direct substitutes include other GEC03DABN-M30 variants from Sullins Connector Solutions. Cross-brand replacements require matching the 2.54mm pitch, 6-position count, surface mount style, and high-temperature insulation specifications to ensure mechanical and electrical compatibility.
