GER4004

Single Diodes Overview

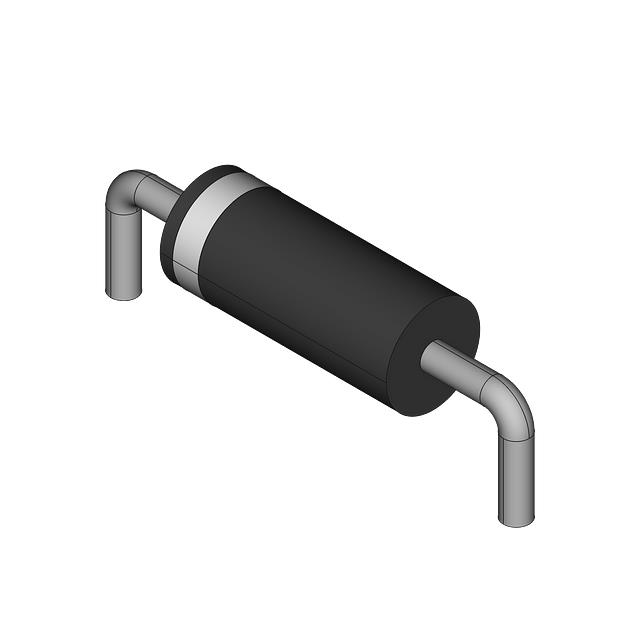

The GER4004 is a general-purpose rectifier diode manufactured by Harris Corporation. It features a maximum repetitive peak reverse voltage of 400 V and an average rectified forward current of 1 A. The device utilizes a DO-204 axial through-hole package. It operates within a junction temperature range of -65°C to 175°C.

Single Diodes Feature Summary

• General-purpose rectification capability
• High thermal stability with extended junction temperature range
• Through-hole axial mounting configuration

Single Diodes Applications

• Power supply rectification circuits
• General electronic equipment protection
• Industrial control systems

Single Diodes Procurement Notes

Verify the manufacturer designation as Harris Corporation, noting historical corporate transitions. Confirm RoHS compliance status for specific production lots. Ensure the package type matches the required DO-204 axial form factor. Validate electrical ratings against circuit requirements before integration.

Single Diodes Selection Notes

Select this component for applications requiring robust general-purpose rectification with high voltage tolerance. The 400 V reverse voltage rating provides sufficient margin for standard AC line voltages. The 1 A current capacity suits moderate power loads. Consider the wide operating temperature range for harsh environments.

Single Diodes Part Context

Harris Corporation was a prominent electronics manufacturer acquired by L3Harris Technologies. This component belongs to their legacy discrete semiconductor portfolio. The part represents standard silicon rectifier technology used in various industrial and commercial applications prior to modern consolidation.

Single Diodes Replacement Considerations

Equivalent parts include 1N4004 series diodes from other manufacturers offering identical 400V/1A specifications in DO-204 packages. Verify pinout compatibility and thermal characteristics when substituting.
