GF1M1FASCL

$6.62

Description：UTILITY CONNECTORS
Series：GF
Mfr：Amphenol Positronic
Package：Bag

SKU:c019443d27f0 Category: Headers, Male Pins Brand: Amphenol Positronic

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

GF1M1FASCL is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Amphenol Positronic. Its product description is UTILITY CONNECTORS. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for GF1M1FASCL

Description：UTILITY CONNECTORS
Series：GF
Mfr：Amphenol Positronic
Package：Bag
Connector Type：Header
Contact Type：Female Socket; Male Pin
Pitch - Mating：0.281" (7.14mm)
Number of Positions：2
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Unshrouded
Mounting Type：Through Hole
Termination：Solder Cup
Fastening Type：Push-Pull
Contact Length - Mating：0.221" (5.61mm)
Contact Length - Post：0.187" (4.75mm)
Overall Contact Length：0.750" (19.05mm)
Insulation Height：0.342" (8.68mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：Flash
Contact Finish - Post：Gold
Contact Material：Copper Alloy
Insulation Material：Diallyl Phthalate (DAP), Glass Filled
Features：-
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：-
Insulation Color：Gray
Current Rating (Amps)：7.5A
Voltage Rating：300VAC

Headers, Male Pins datasheet and documents for GF1M1FASCL

GF1M1FASCL

Headers, Male Pins Overview

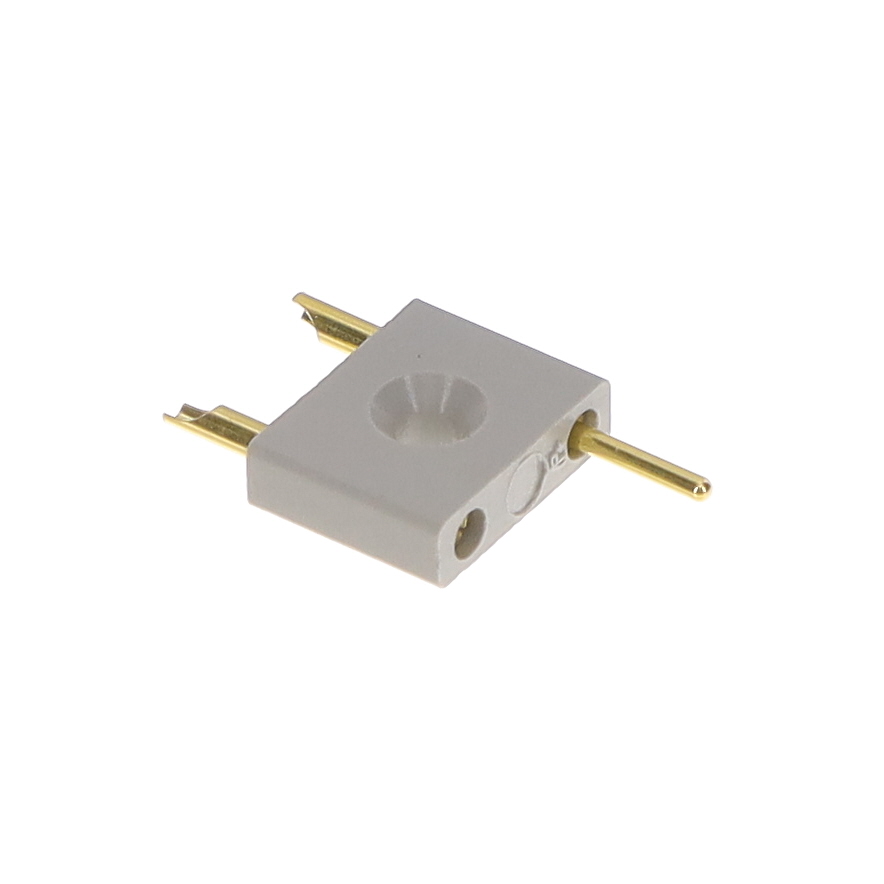

The GF1M1FASCL is a male pin power connector from Amphenol Positronic, designed for panel mounting with a solder cup termination method. It features a copper alloy contact material with gold plating and a Diallyl Phthalate (DAP) housing. The component operates within a temperature range of -55°C to +125°C and maintains an insulation resistance of 5 GOhms. It utilizes a 7.14 mm pitch and is classified under rectangular military specification connectors.

Headers, Male Pins Feature Summary

Male pin configuration with solder cup termination for secure wire attachment
Diallyl Phthalate (DAP) housing material providing structural integrity
Gold-plated copper alloy contacts ensuring reliable conductivity

Headers, Male Pins Applications

Panel mounted power distribution systems
Military specification interconnect applications
Industrial equipment requiring robust power connections

Headers, Male Pins Procurement Notes

Verify the exact part number suffix and manufacturer documentation before procurement. Confirm that the solder cup termination style matches your wiring harness requirements. Ensure the DAP housing material meets environmental compliance standards for your specific application. Cross-reference the 7.14 mm pitch with mating components to guarantee mechanical compatibility.

Headers, Male Pins Selection Notes

Select this connector when a male pin interface with solder cup termination is required for panel mounting. The DAP housing and gold-plated copper contacts offer durability in demanding environments. Consider the 7.14 mm pitch dimension for spacing constraints. Verify that the operating temperature range of -55°C to +125°C aligns with your system's thermal profile.

Headers, Male Pins Part Context

This component belongs to the utility connector category by Amphenol Positronic. It is distinct from board-to-board or cable-to-cable solutions due to its panel mount design. The solder cup termination differentiates it from PCB mount variants. It serves as a specialized interconnect solution for fixed installations rather than flexible cabling.
