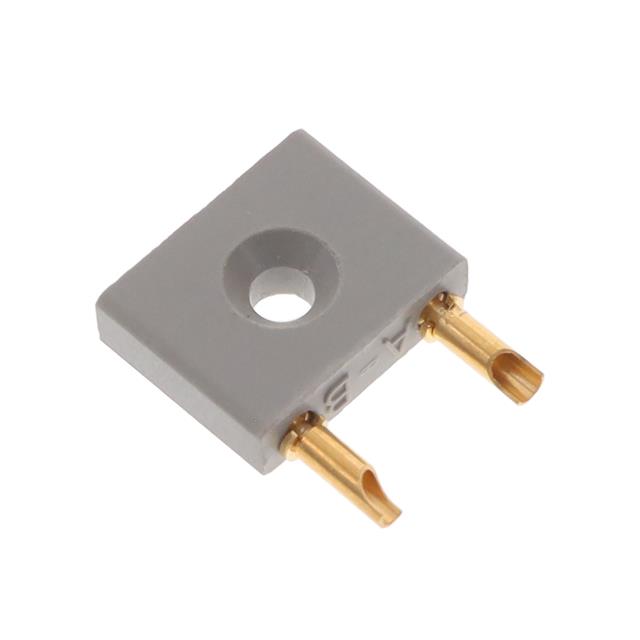

GF2F00SCL

GF2F00SCL is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Amphenol Positronic. Its product description is UTILITY CONNECTORS. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for GF2F00SCL

• Description：UTILITY CONNECTORS
• Series：GF
• Mfr：Amphenol Positronic
• Package：Bulk,Bag
• Connector Type：Receptacle
• Contact Type：Female Socket
• Style：Board to Board
• Number of Positions：2
• Number of Positions Loaded：All
• Pitch - Mating：0.281" (7.14mm)
• Number of Rows：1
• Row Spacing - Mating：-
• Mounting Type：Through Hole
• Termination：Solder Cup
• Fastening Type：Push-Pull
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：Flash
• Insulation Color：Gray
• Insulation Height：0.342" (8.69mm)
• Contact Length - Post：-
• Operating Temperature：-55°C ~ 125°C
• Material Flammability Rating：-
• Contact Finish - Post：Gold
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：-
• Current Rating (Amps)：7.5A
• Voltage Rating：300VAC

Headers, Receptacles, Female Sockets datasheet and documents for GF2F00SCL
