GF2M00SCR

Headers, Male Pins Overview

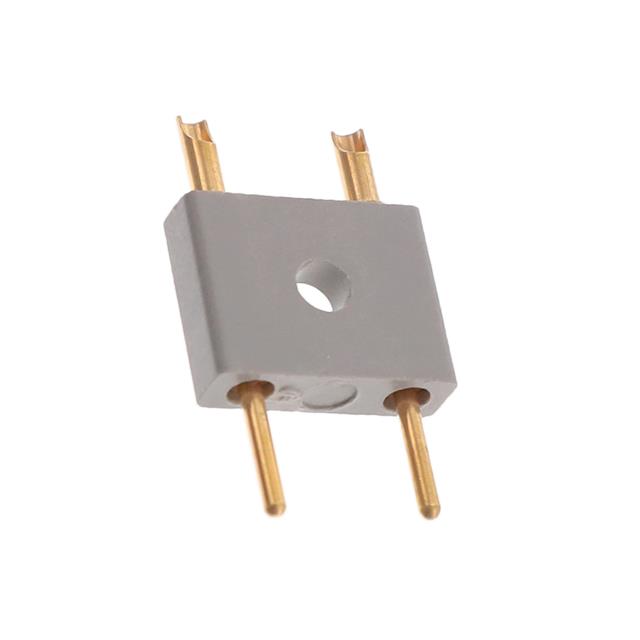

The Amphenol Positronic GF2M00SCR is a Power to the Board connector header designed for panel installation. It features two positions in a single row with a 7.14 mm pitch and straight mounting angle. The contacts are male pins made of copper alloy with gold plating, rated for 7.5 A current and 300 VAC voltage. The housing is constructed from Diallyl Phthalate (DAP), providing an insulation resistance of 5 GOhms. It utilizes a solder cup termination type and operates within a temperature range of -55 C to +125 C.

Headers, Male Pins Feature Summary

• Panel-mount power distribution via solder cup termination
• Gold-plated copper alloy contacts for reliable conductivity
• High-temperature resistant DAP housing material

Headers, Male Pins Applications

• Power supply interconnects
• Industrial control panels
• Electronic equipment chassis connections

Headers, Male Pins Procurement Notes

Verify specific suffix variants such as GF2M00SCR-14 or GF2M00SCR-50 against project requirements, as availability may vary by distributor region. Confirm RoHS compliance status directly with the manufacturer documentation, as some listings indicate non-compliance. Ensure the selected variant matches the required lead time and minimum order constraints before finalizing procurement plans.

Headers, Male Pins Selection Notes

Select this component when a robust, high-current panel-mount solution is required for power distribution. The 7.14 mm pitch accommodates standard wire gauges, while the 7.5 A rating suits moderate power applications. Consider the operating temperature range and DAP housing durability for environments requiring thermal stability and chemical resistance.

Headers, Male Pins Part Context

This part belongs to the GF series of Power to the Board connectors from Amphenol Positronic. These headers are engineered for direct board-to-panel connections, offering a compact footprint compared to traditional terminal blocks. The series emphasizes durability and ease of assembly through its solder cup design.

Headers, Male Pins Replacement Considerations

Direct substitutes are not explicitly confirmed in public documentation. Evaluate cross-reference options based on identical pin count, pitch, current rating, and termination style. Verify mechanical dimensions and material compatibility before adopting alternative components.
