GF3F1MASCR

$6.04

Description：UTILITY CONNECTORS
Series：GF
Mfr：Amphenol Positronic
Package：Bulk,Bag

SKU:540f82f9f6f3 Category: Headers, Male Pins Brand: Amphenol Positronic

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

GF3F1MASCR is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Amphenol Positronic. Its product description is UTILITY CONNECTORS. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for GF3F1MASCR

Description：UTILITY CONNECTORS
Series：GF
Mfr：Amphenol Positronic
Package：Bulk,Bag
Connector Type：Header
Contact Type：Female Socket; Male Pin
Pitch - Mating：0.281" (7.14mm)
Number of Positions：4
Number of Rows：2
Row Spacing - Mating：0.125" (3.18mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Unshrouded
Mounting Type：Through Hole
Termination：Solder Cup
Fastening Type：Push-Pull
Contact Length - Mating：0.221" (5.61mm)
Contact Length - Post：0.187" (4.75mm)
Overall Contact Length：0.750" (19.05mm)
Insulation Height：0.342" (8.68mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：Flash
Contact Finish - Post：Gold
Contact Material：Copper Alloy
Insulation Material：Diallyl Phthalate (DAP), Glass Filled
Features：-
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：-
Insulation Color：Gray
Current Rating (Amps)：7.5A
Voltage Rating：300VAC

Headers, Male Pins datasheet and documents for GF3F1MASCR

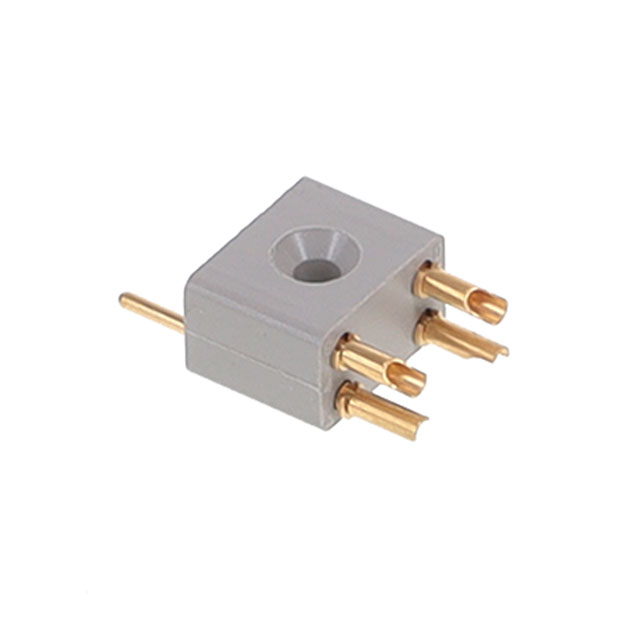

GF3F1MASCR

Headers, Male Pins Overview

The GF3F1MASCR is a male pin header connector from the Amphenol Positronic line, designed for power-to-board applications. It features four positions with a 7.14 mm pitch and utilizes solder cup termination for secure PCB mounting. Constructed with copper alloy contacts plated in gold, it ensures reliable conductivity. The unit operates within a temperature range of -55°C to +125°C and supports up to 7.5 A current at 300 VAC. Its straight, single-row configuration facilitates efficient panel installation.

Headers, Male Pins Feature Summary

Male pin header design for robust power transmission
Solder cup termination ensures stable board connection
Gold-plated copper alloy contacts for corrosion resistance

Headers, Male Pins Applications

Panel-mounted power distribution systems
Industrial control equipment interconnects
Embedded power supply connections

Headers, Male Pins Procurement Notes

Verify that the specific suffix matches the required contact configuration and termination style. Confirm compliance with RoHS directives if environmental regulations apply. Ensure the operating voltage and current ratings align with the system requirements before integration. Cross-reference the datasheet for precise mechanical dimensions to guarantee proper fit within the enclosure.

Headers, Male Pins Selection Notes

Choose this component when a straight, panel-mount male header is required for moderate current applications. The 7.14 mm pitch accommodates standard wiring harnesses. Consider the 300 VAC rating for general power distribution tasks. Verify that the solder cup termination method suits the assembly process compared to alternative termination types.

Headers, Male Pins Part Context

This connector belongs to the Amphenol Positronic power connector portfolio, focusing on durable interconnect solutions. The series emphasizes reliability in demanding environments through high-temperature tolerance and robust material selection. It serves as a critical link between power sources and circuit boards in various industrial sectors.
