GF3M1FASCL

Headers, Male Pins Overview

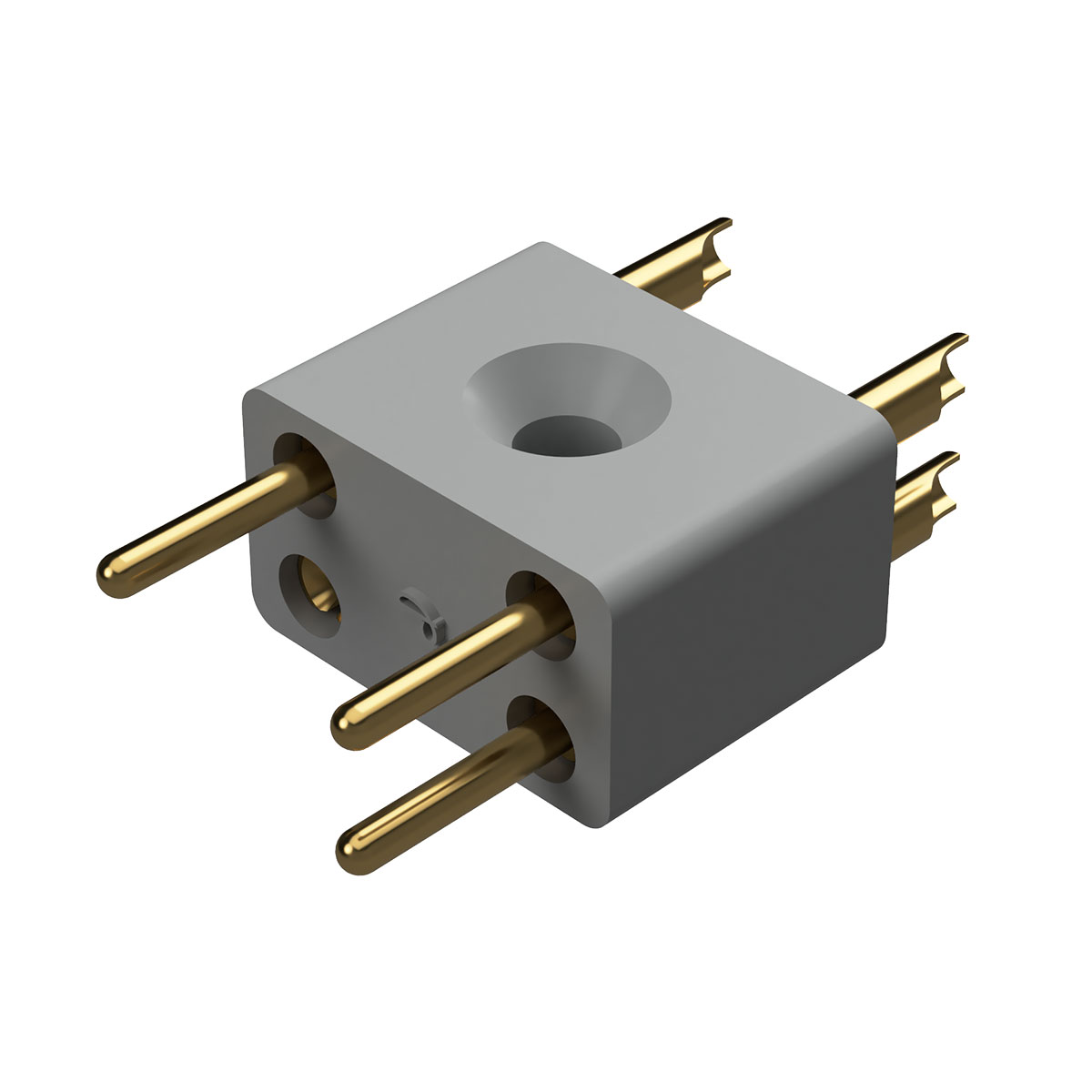

The GF3M1FASCL is a male pin power connector from the Amphenol Positronic series, designed for PCB mounting with solder cup termination. It features copper alloy contacts with gold plating and a Diallyl Phthalate (DAP) housing filled with glass. The component supports a current rating of 7.5 A and operates within a temperature range of -55°C to +125°C. It provides an insulation resistance of 5 GOhms.

Headers, Male Pins Feature Summary

• Male pin contact configuration for secure power transmission
• Solder cup termination method for reliable board integration
• Glass-filled Diallyl Phthalate housing for structural stability

Headers, Male Pins Applications

• Power distribution in electronic assemblies
• Industrial control system interconnections
• Equipment requiring robust thermal performance

Headers, Male Pins Procurement Notes

Verify the specific datasheet version and compliance documentation directly with Amphenol Positronic before procurement. Confirm that the solder cup termination style matches your manufacturing process requirements. Ensure environmental specifications align with operational conditions.

Headers, Male Pins Selection Notes

Select this connector when a male pin interface with solder cup termination is required. Consider the 7.5 A current rating and -55°C to +125°C operating range for suitability. Evaluate the DAP housing material for chemical and thermal resistance needs.

Headers, Male Pins Part Context

This component belongs to the Amphenol Positronic power connector portfolio, focusing on high-reliability interconnect solutions. It utilizes standard contact materials and plating to ensure consistent electrical performance across various industrial applications.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult manufacturer resources for potential alternatives if this specific model is unavailable.
