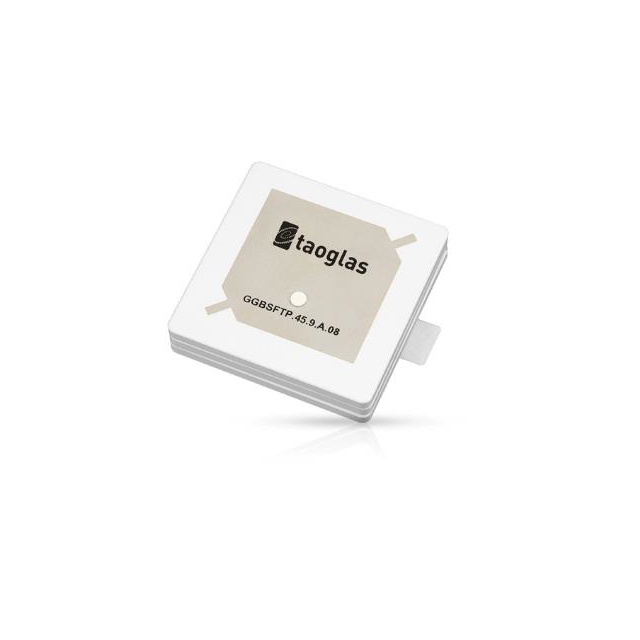

GGBSFTP.45.9.A.08 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Taoglas Limited. Its product description is GPS L1,2,5, GLONASS, BEIDOU SING. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for GGBSFTP.45.9.A.08
- Description：GPS L1,2,5, GLONASS, BEIDOU SING
- Series：-
- Mfr：Taoglas Limited
- Package：Tray
- RF Family/Standard：Navigation
- Frequency Group：UHF (1GHz ~ 2GHz)
- Frequency (Center/Band)：1.176GHz, 1.227GHz, 1.575GHz
- Frequency Range：-
- Antenna Type：Ceramic Patch
- Number of Bands：3
- VSWR：-
- Return Loss：-6dB, -10dB
- Gain：-0.8dBi, 1.1dBi, 2.5dBi
- Features：-
- Termination：Pin
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Adhesive
- Height (Max)：0.354" (9.00mm)
- Applications：Beidou, Galileo, GLONASS, GPS
- Power - Max：-
Antennas RF datasheet and documents for GGBSFTP.45.9.A.08
Antennas RF Overview
The GGBSFTP.45.9.A.08 is a single-feed circularly polarized stacked patch antenna designed for Global Navigation Satellite Systems (GNSS). It supports GPS L1, L2, and L5 bands, as well as GLONASS and BeiDou frequencies. The component features a Terrablast ceramic construction with dimensions of 45mm by 45mm and a maximum height of 9.00mm. It utilizes pin termination for adhesive mounting and complies with RoHS3 standards.
Antennas RF Feature Summary
- Supports multi-constellation GNSS signals including GPS, GLONASS, and BeiDou
- Stacked passive patch design for enhanced signal reception
- Robust Terrablast ceramic construction
- Single feed configuration for simplified integration
Antennas RF Applications
- GPS L1, L2, and L5 navigation systems
- GLONASS positioning applications
- BeiDou satellite navigation receivers
Antennas RF Procurement Notes
Verify the current lifecycle status before procurement planning. Official documentation indicates an End of Life notification dated June 28, 2019. Confirm availability through authorized distributors or check for valid replacement part numbers from the manufacturer to ensure supply chain continuity for production requirements.
Antennas RF Selection Notes
Select this component for applications requiring integrated support for multiple GNSS constellations within a compact form factor. The 45mm square footprint and 9mm height are suitable for embedded installations. Ensure the design accommodates adhesive mounting methods and verifies compatibility with single-feed RF front-end architectures.
Antennas RF Part Context
This model belongs to the Taoglas Terrablast series of GNSS antennas. It is specifically engineered for high-performance satellite navigation applications. The product line emphasizes durability and multi-band capability, distinguishing it from standard single-frequency ceramic patch antennas used in basic positioning modules.
Antennas RF Replacement Considerations
Public records indicate an End of Life notification for this specific part number. Verify if newer revisions or alternative models within the same Terrablast family are available as direct substitutes. Consult official manufacturer resources for confirmed compatible replacements.
