GHPINMS

Overview

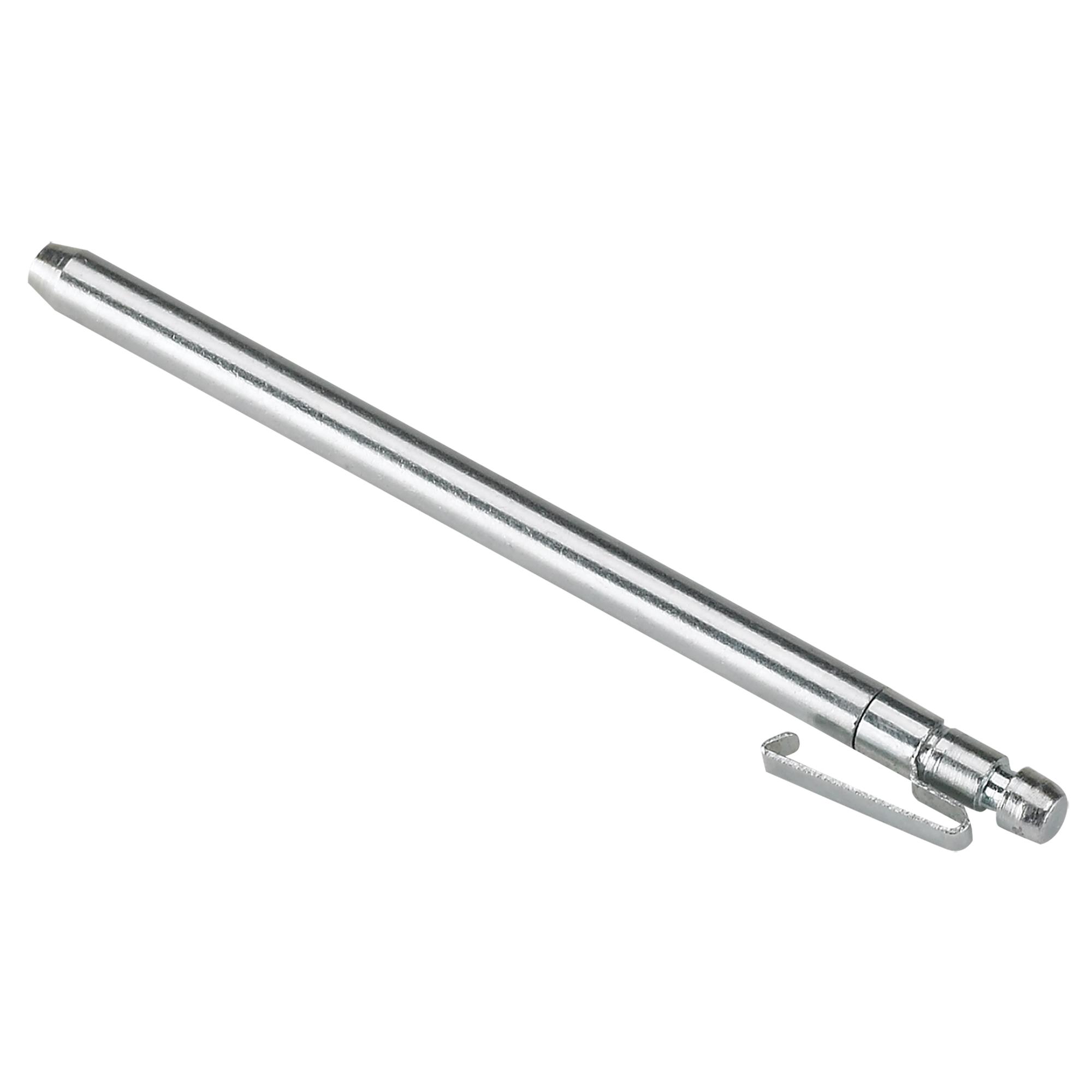

The GHPINMS is a hinge pin kit manufactured by Hoffman Enclosures, Inc., designed for use with Fusion G7 series enclosures. Constructed from mild steel with a zinc-plated finish, this accessory ensures secure door attachment and smooth operation. The kit typically contains two units per package. It serves as a replacement or installation component for maintaining the structural integrity of enclosure doors within industrial environments.

Feature Summary

• Provides secure mechanical attachment for enclosure doors
• Constructed from durable mild steel with protective plating
• Designed specifically for compatibility with Fusion G7 series enclosures

Applications

• Replacement hinges for Fusion G7 series wall-mount enclosures
• Maintenance of industrial control cabinet door mechanisms
• Installation accessories for new Fusion G7 enclosure assemblies

Procurement Notes

Verify that the target equipment belongs to the Hoffman Fusion G7 series before procurement, as this part is not compatible with other Hoffman lines such as Concept or VM3. Confirm the requirement for a quantity of two pins per kit. Ensure the zinc-plated mild steel specification meets the environmental corrosion resistance requirements of the installation site. Cross-reference the manufacturer part number GHPINMS with official nVent Hoffman documentation to confirm current availability and standard lead times.

Selection Notes

Select this component only when servicing or building enclosures explicitly designated as the Fusion G7 series. Do not substitute with generic hinge pins due to specific dimensional tolerances required for proper door alignment and sealing. Verify that the existing enclosure frame supports the weight and operational frequency associated with these steel hinge pins. Consider the zinc-plated finish for basic corrosion resistance in standard indoor industrial settings.

Part Context

This component belongs to the Hoffman Enclosures (now nVent) accessory portfolio, specifically tailored for their Fusion G7 line of metal enclosures. It functions as a critical mechanical fastener rather than a standalone enclosure unit. The product is categorized under rack and enclosure accessories, distinct from complete housing solutions like the MAS or MCS series.

Replacement Considerations

Official substitutes are limited to direct manufacturer replacements. Generic hardware store pins may not fit the specific pivot geometry of Fusion G7 doors. Verify compatibility with the specific enclosure model before ordering.
