Product Detailed Parameters
- Description：FILTER LC(PI) 0.3UF TH
- Series：GK
- Mfr：KYOCERA AVX
- Package：Bulk
- Type：Low Pass
- Filter Order：3rd
- Technology：LC (Pi)
- Number of Channels：1
- Center / Cutoff Frequency：-
- Attenuation Value：80dB @ 100MHz
- Resistance - Channel (Ohms)：0.15
- Values：C = 0.3µF
- ESD Protection：-
- Operating Temperature：-55°C ~ 125°C
- Applications：General Purpose
- Voltage - Rated：200V
- Mounting Type：Through Hole
- Package / Case：Axial - Threaded Terminals
- Size / Dimension：0.375" Dia x 0.540" L (9.53mm x 13.72mm)
- Height：-
- Current：5:00 AM
- Grade：-
- Qualification：-
Download product information
Overview

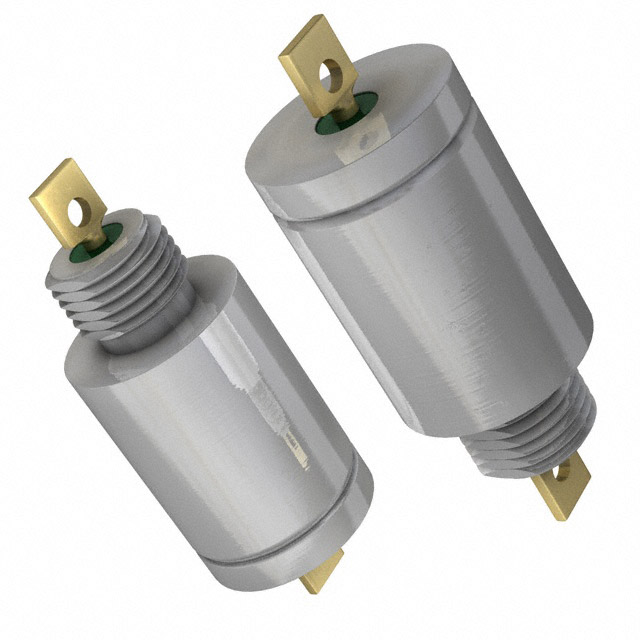

The GK3LA-P11 is a third-order low-pass LC (Pi) EMI/RFI filter manufactured by Kyocera AVX. It features a single channel design with axial leads and threaded terminals for secure mounting. The component utilizes a capacitance value of 0.3µF and supports a current rating of 5 A. This configuration is engineered to attenuate electromagnetic interference in power supply lines, providing effective noise suppression for sensitive electronic circuits.
Feature Summary
- Third-order low-pass filtering architecture for enhanced attenuation
- Axial lead construction with threaded terminal options
- Single-channel design for targeted noise suppression
Applications
- Power supply line noise suppression
- Electromagnetic interference mitigation in industrial equipment
- Noise filtering for sensitive electronic circuits
Procurement Notes
Verify the specific datasheet revision and mechanical dimensions prior to integration. Confirm that the threaded terminal style matches the enclosure requirements. Ensure the 5 A current rating and 0.3µF capacitance align with the circuit design specifications. Check for any RoHS compliance documentation if required by the target market regulations.
Selection Notes
Select this component when a third-order LC filter topology is required for high-current applications up to 5 A. The threaded terminal option provides robust mechanical stability compared to standard axial leads. Consider the physical size constraints associated with the Pi network configuration and the need for secure mounting in vibration-prone environments.
Part Context
Kyocera AVX manufactures the GK3LA-P11 as part of its EMI/RFI filter portfolio. These components are designed to meet the demands of industrial and commercial electronics for reliable noise control. The manufacturer specializes in passive components, including capacitors and filters, supporting various global industries.
