GMLB-160808-1000L-N8A

Chip Ferrite Bead Overview

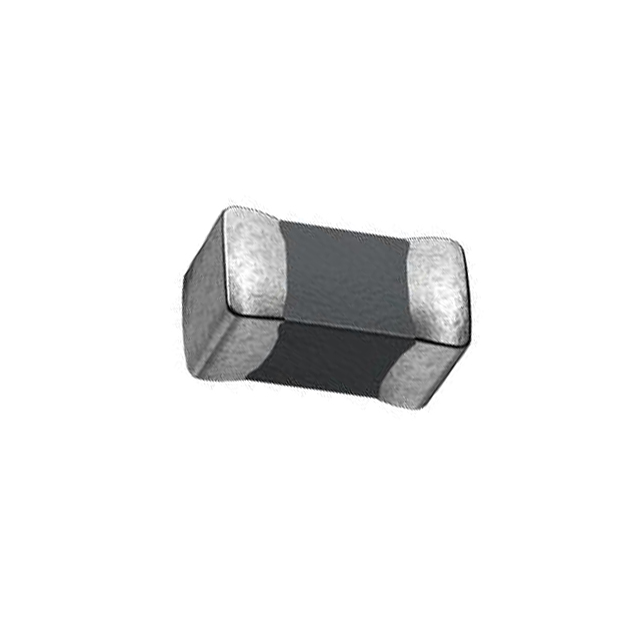

The GMLB-160808-1000L-N8A is a multilayer ferrite chip bead manufactured by Pulse Electronics. It features a 1000 Ohms impedance at a test frequency of 100 MHz with a 25% tolerance. The component supports a maximum DC current of 400 mA and has a maximum DC resistance of 300 mOhms. It operates within a temperature range of -55°C to +125°C. The device utilizes a shielded SMD/SMT construction in a 0603 (1.6 mm x 0.8 mm x 0.8 mm) package.

Chip Ferrite Bead Feature Summary

• Multilayer ferrite chip bead design for surface mount applications
• Shielded construction to minimize electromagnetic interference
• Wide operating temperature range suitable for demanding environments

Chip Ferrite Bead Applications

• Automotive electronic devices
• Power supply regulation and control circuits
• General signal conditioning in electronic systems

Chip Ferrite Bead Procurement Notes

Verify the specific manufacturer part number against official Pulse Electronics documentation to ensure compatibility. Confirm that the impedance, current rating, and package dimensions meet the target circuit requirements. Check for any recent product change notices or obsolescence announcements from the manufacturer before finalizing procurement decisions.

Chip Ferrite Bead Selection Notes

Select this component when a 1000 Ohms impedance at 100 MHz is required for noise suppression in space-constrained designs. Ensure the 400 mA current handling capability aligns with the circuit's operational load. The 0603 footprint and shielded type are critical for integration into compact PCB layouts requiring EMI mitigation.

Chip Ferrite Bead Part Context

This part belongs to the GMLB series of multilayer ferrite chip beads from Pulse Electronics. These components are designed for high-frequency noise suppression in compact surface-mount configurations. The series offers various impedance values and current ratings to suit different filtering needs in modern electronic assemblies.

Chip Ferrite Bead Replacement Considerations

Cross-reference with equivalent ferrite beads offering 1000 Ohms impedance at 100 MHz in a 0603 shielded package. Verify matching current ratings and DC resistance specifications to ensure functional parity without redesigning the surrounding circuitry.
