GNSSL1L2L5182515 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Pulse Electronics. Its product description is ANTENNA GNSS MODULE 15DB LNA. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for GNSSL1L2L5182515
- Description：ANTENNA GNSS MODULE 15DB LNA
- Series：-
- Mfr：Pulse Electronics
- Package：Bag
- RF Family/Standard：Navigation
- Frequency Group：L Band (1GHz ~ 2GHz)
- Frequency (Center/Band)：1.176GHz, 1.226GHz, 1.581GHz
- Frequency Range：1.164GHz ~ 1.189GHz, 1.215GHz ~ 1.237GHz, 1.561GHz ~ 1.602GHz
- Antenna Type：Ceramic Patch
- Number of Bands：3
- VSWR：-
- Return Loss：-12dB, -10dB, -8dB
- Gain：2dBi, 3.3dBi, 5dBi
- Features：Cable - 100mm, LNA, Filter
- Termination：I-PEX MHFI
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount
- Height (Max)：0.512" (13.00mm)
- Applications：BeiDou, Galileo, GLONASS, GNSS, GPS
- Power - Max：-
Antennas RF datasheet and documents for GNSSL1L2L5182515
Antennas RF Overview

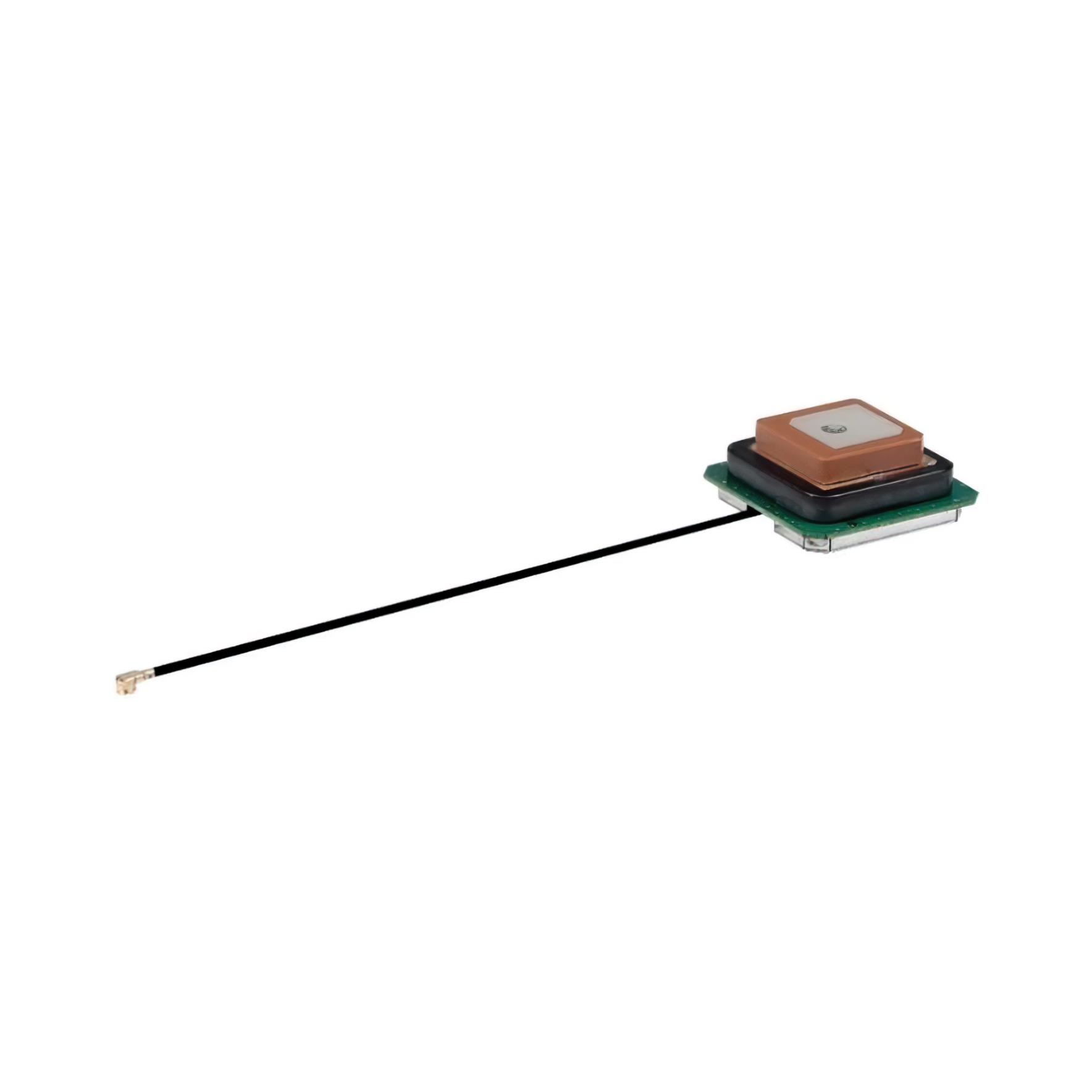

The GNSSL1L2L5182515 is a stacked active patch antenna manufactured by Pulse Electronics, designed for multi-constellation Global Navigation Satellite System (GNSS) applications. It supports GPS, GLONASS, Galileo, BeiDou, and IRNSS signals across L1, L2, and L5 frequency bands. The component integrates a low-noise amplifier with a gain of 15 dB and operates within a frequency range of 1.164 GHz to 1.189 GHz. It features an I-PEX MHF connector termination and includes a built-in filter. The unit is supplied with a 100 mm cable and draws 11 mA of current.
Antennas RF Feature Summary
- Multi-constellation support for GPS, GLONASS, Galileo, BeiDou, and IRNSS
- Integrated 15 dB low-noise amplifier for signal enhancement
- Stacked patch design covering L1, L2, and L5 frequency bands
- Includes integrated filter and 100 mm cable assembly
Antennas RF Applications
- Global navigation satellite system receivers
- Precision positioning devices
- Telematics and fleet management systems
- Surveying and mapping equipment
Antennas RF Procurement Notes
Verify the specific frequency band coverage and connector type compatibility before procurement. Confirm that the integrated low-noise amplifier specifications meet the system's power budget requirements. Ensure the 100 mm cable length aligns with the mechanical layout constraints of the target application. Cross-reference the manufacturer's latest datasheet for any updates to the part number or operational parameters.
Antennas RF Selection Notes
Select this component when multi-constellation GNSS support is required in a compact form factor. The integrated LNA and filter simplify the RF front-end design by reducing external component count. Consider the operating current consumption and voltage requirements for battery-powered applications. Verify that the I-PEX MHF connector interface matches the existing board layout and mating components.
Antennas RF Part Context
This part belongs to Pulse Electronics' portfolio of active GNSS antennas. It is engineered for high-performance navigation applications requiring robust signal reception across multiple global satellite constellations. The stacked patch architecture allows for efficient bandwidth utilization while maintaining a low profile suitable for space-constrained electronic assemblies.
Antennas RF Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Consult the manufacturer for direct equivalents or updated series replacements if this specific model becomes unavailable.
