GPS-L1L2-MAG

$258.57

Description：GPS ACTIVE HIGH GAIN MAG MOUNT
Series：-
Mfr：Amphenol PCTEL
Package：Box

SKU:050ebf3c7877 Category: RF Antennas Brand: Amphenol PCTEL

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

GPS-L1L2-MAG is listed in the Antennas RF range at ChipApex. The manufacturer field lists Amphenol PCTEL. Its product description is GPS ACTIVE HIGH GAIN MAG MOUNT. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for GPS-L1L2-MAG

Description：GPS ACTIVE HIGH GAIN MAG MOUNT
Series：-
Mfr：Amphenol PCTEL
Package：Box
RF Family/Standard：Navigation
Frequency Group：UHF (1GHz ~ 2GHz)
Frequency (Center/Band)：1.575GHz, 1.2276GHz
Frequency Range：1.565GHz ~ 1.585GHz, 1.2176GHz ~ 1.2376GHz
Antenna Type：Module
Number of Bands：2
VSWR：2
Return Loss：-
Gain：-
Features：LNA
Termination：SMA Female
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Magnetic
Height (Max)：0.950" (24.13mm)
Applications：GPS
Power - Max：-

Antennas RF datasheet and documents for GPS-L1L2-MAG

GPS-L1L2-MAG

Antennas RF Overview

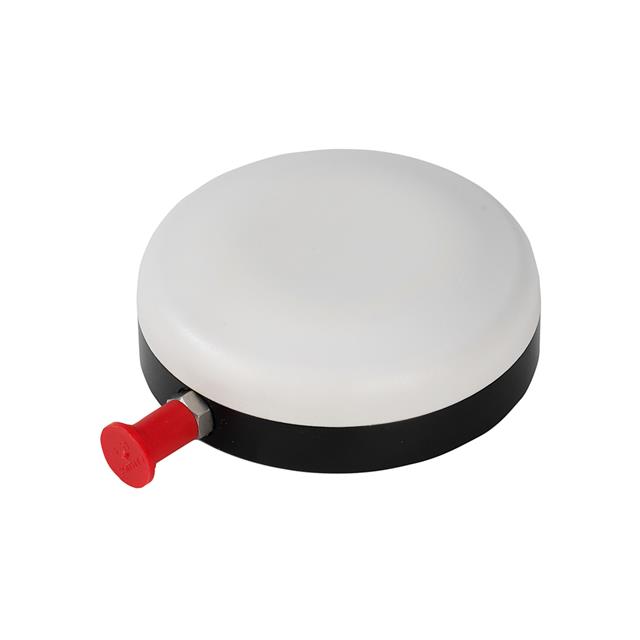

The Amphenol PCTEL GPS-L1L2-MAG is a dual-band GNSS module antenna designed for L1 and L2 frequencies. It operates at 1.57542 GHz and 1.2276 GHz with a maximum gain of 28 dB. The unit features a magnetic mounting base and an SMA female connector. It provides high sensitivity for precise positioning applications.

Antennas RF Feature Summary

Dual-band reception capability for L1 and L2 signals
Integrated low-noise amplifier for enhanced signal strength
Magnetic mounting configuration for rapid deployment

Antennas RF Applications

GNSS tracking systems
Precision agriculture equipment
Surveying instruments

Antennas RF Procurement Notes

Verify the specific connector type and cable length requirements against the official datasheet before ordering. Confirm that the magnetic base meets the surface material specifications for the intended installation environment to ensure secure attachment.

Antennas RF Selection Notes

Select this model when dual-frequency L1/L2 reception is required for improved accuracy. Ensure the system impedance matches the 50 Ohm specification. Verify that the SMA female interface aligns with the receiving equipment's input connector.

Antennas RF Part Context

This component belongs to the GPS-L1L2 series of RF antennas by Amphenol PCTEL. It is engineered specifically for global navigation satellite systems requiring multi-frequency support. The design focuses on compact integration into mobile or stationary platforms.
