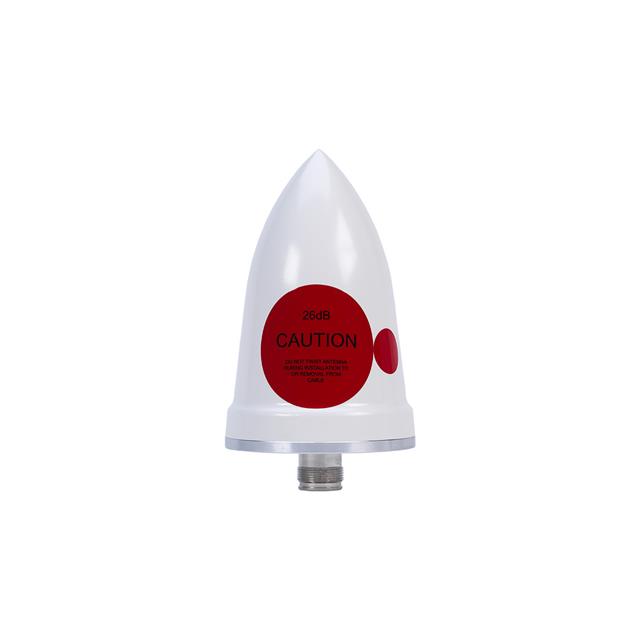

GPS-TMG-HR-26N is listed in the Antennas RF range at ChipApex. The manufacturer field lists Amphenol PCTEL. Its product description is RF ANT 1.575GHZ DOME N TYP F POL. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for GPS-TMG-HR-26N
- Description：RF ANT 1.575GHZ DOME N TYP F POL
- Series：GPS-TMG-HR-26N
- Mfr：Amphenol PCTEL
- Package：Bulk
- RF Family/Standard：Navigation
- Frequency Group：UHF (1GHz ~ 2GHz)
- Frequency (Center/Band)：1.575GHz
- Frequency Range：1.565GHz ~ 1.585GHz
- Antenna Type：Dome
- Number of Bands：1
- VSWR：1.5
- Return Loss：-
- Gain：3.5dBic
- Features：LNA, Filter
- Termination：N Type Female
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Pole Mount
- Height (Max)：4.961" (126.00mm)
- Applications：GNSS, GPS
- Power - Max：-
Antennas RF datasheet and documents for GPS-TMG-HR-26N
Antennas RF Overview
The GPS-TMG-HR-26N is a dome-style RF antenna manufactured by Amphenol PCTEL, designed for navigation applications. It operates at a center frequency of 1.575GHz with a bandwidth ranging from 1.565GHz to 1.585GHz. The component provides a gain of 3.5dBic and maintains a Voltage Standing Wave Ratio (VSWR) of 1.5. It features an N-type female termination and is intended for base mounting. The maximum height of the unit is 4.961 inches (126.00mm). Key integrated features include a Low Noise Amplifier (LNA) and filtering capabilities.
Antennas RF Feature Summary
- Incorporates narrow band high rejection filtering to support reliable deployments
- Integrates a Low Noise Amplifier (LNA) for signal enhancement
- Designed as a timing reference antenna for navigation systems
Antennas RF Applications
- GPS positioning systems
- GNSS timing reference applications
- Industrial IoT infrastructure
Antennas RF Procurement Notes
Verify the specific ordering suffix against the manufacturer's current documentation to ensure correct configuration. Confirm that the required termination type matches the system interface. Check the latest datasheet for any updates to mechanical dimensions or environmental ratings prior to final integration.
Antennas RF Selection Notes
Select this model when a dedicated single-band GPS dome antenna is required. Ensure the application supports base mounting configurations. Verify that the N-type female connector aligns with existing cabling infrastructure. Consider the integrated LNA requirements for the specific signal environment.
Antennas RF Part Context
This component belongs to the GPS-TMG-HR-26 series, which focuses on timing reference antennas. The series emphasizes narrow band performance and high rejection filtering. It is positioned within the UHF frequency group for navigation standards.
Antennas RF Replacement Considerations
The GNSS1-TMG-26NMSCL is a documented alternative in the same product family. It offers similar dome construction but operates at 1.5845GHz with 3dBic gain.
