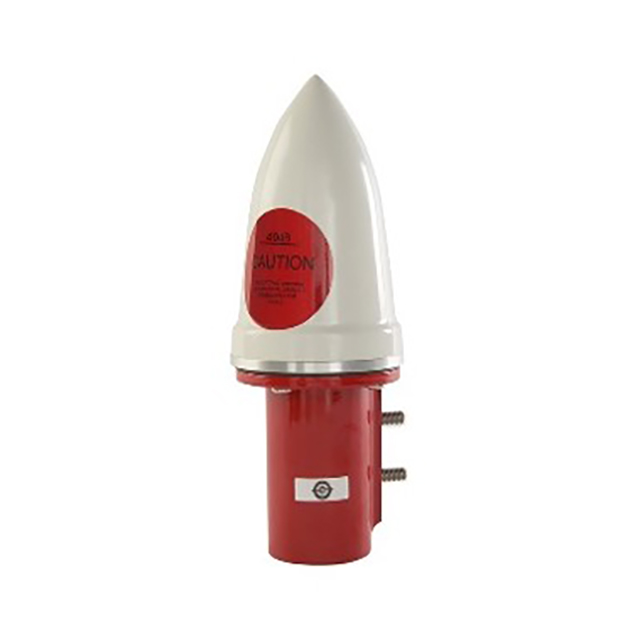

GPS-TMG-HR-40NMSCL-A is listed in the Antennas RF range at ChipApex. The manufacturer field lists Amphenol PCTEL. Its product description is GPS TIMING ANT, 40DB, HR, WIDE C. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for GPS-TMG-HR-40NMSCL-A
- Description：GPS TIMING ANT, 40DB, HR, WIDE C
- Series：-
- Mfr：Amphenol PCTEL
- Package：Bulk
- RF Family/Standard：Navigation
- Frequency Group：UHF (1GHz ~ 2GHz)
- Frequency (Center/Band)：1.575GHz
- Frequency Range：1.565GHz ~ 1.585GHz
- Antenna Type：Dome
- Number of Bands：1
- VSWR：1.5
- Return Loss：-
- Gain：3.5dBic
- Features：-
- Termination：N Type Female
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Bracket Mount
- Height (Max)：5.000" (127.00mm)
- Applications：GPS
- Power - Max：-
Antennas RF datasheet and documents for GPS-TMG-HR-40NMSCL-A
Antennas RF Overview
The GPS-TMG-HR-40NMSCL-A is a high-rejection GPS timing antenna manufactured by Amphenol PCTEL. It operates at the L1 frequency of 1.575 GHz with a specified bandwidth of 1.565 GHz to 1.585 GHz. The unit features an integrated amplifier providing 40 dB gain and an antenna gain of 3.5 dBic. Designed for panel mounting, it utilizes an N-type female connector interface. This component supports applications requiring precise time synchronization and navigation.
Antennas RF Feature Summary
- High rejection capability for interference mitigation
- Integrated 40 dB amplifier for signal enhancement
- Dome-style design optimized for wide reception
Antennas RF Applications
- Time synchronization systems
- Commercial tracking networks
- Precision navigation infrastructure
Antennas RF Procurement Notes
Verify the specific suffix 'A' against official datasheets to confirm functional differences from standard variants. Ensure compatibility with existing N-type female interfaces. Confirm environmental ratings match installation requirements. Request updated documentation directly from Amphenol PCTEL to validate current production status and technical specifications before finalizing procurement orders.
Antennas RF Selection Notes
Select this model when high-gain amplification and interference rejection are critical for timing accuracy. The 40 dB gain compensates for cable losses in longer runs. Verify that the panel mount form factor fits the physical constraints of the deployment site. Ensure the operating frequency range aligns with local GPS L1 signals.
Antennas RF Part Context
This part belongs to the GPS-TMG series of RF antennas designed by Amphenol PCTEL. The series focuses on timing and navigation applications. The 'HR' designation typically indicates high rejection characteristics. The 'NMSCL' suffix denotes the connector type and mounting style variations within the product line.
Antennas RF Replacement Considerations
Cross-reference with GPS-TMG-HR-40N for potential mechanical or electrical similarities. Verify if the base model meets all performance requirements without the specific 'A' suffix modifications. Consult manufacturer substitution guides for confirmed equivalent part numbers.
