GPS0010

$38.02

Description：RF ANT 1.575GHZ DOME SMA ML ADH
Series：-
Mfr：Pulse Electronics
Package：Bulk

SKU:3f53fb170350 Category: RF Antennas Brand: Pulse Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

GPS0010 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Pulse Electronics. Its product description is RF ANT 1.575GHZ DOME SMA ML ADH. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for GPS0010

Description：RF ANT 1.575GHZ DOME SMA ML ADH
Series：-
Mfr：Pulse Electronics
Package：Bulk
RF Family/Standard：Navigation
Frequency Group：UHF (1GHz ~ 2GHz)
Frequency (Center/Band)：1.575GHz
Frequency Range：-
Antenna Type：Dome
Number of Bands：1
VSWR：2
Return Loss：-
Gain：5dBic
Features：-
Termination：SMA Male
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Adhesive
Height (Max)：0.500" (12.70mm)
Applications：GPS
Power - Max：-

Antennas RF datasheet and documents for GPS0010

GPS0010

Antennas RF Overview

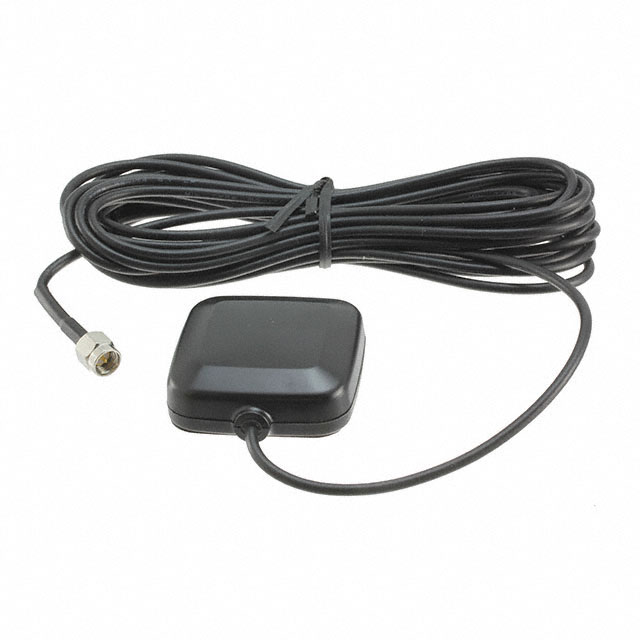

The Pulse Electronics GPS0010 is a black active GPS dome RF antenna designed for navigation applications. It operates at a center frequency of 1.575 GHz with a gain of 5 dBic and a maximum VSWR of 2. The unit features an SMA male connector, adhesive installation type, and a maximum height of 0.500 inches (12.70 mm). It complies with RoHS3 standards.

Antennas RF Feature Summary

Active dome design optimized for GPS signal reception
Adhesive mounting method for secure attachment
SMA male connector interface

Antennas RF Applications

GPS Navigation Systems

Antennas RF Procurement Notes

Verify the specific datasheet version to confirm electrical tolerances and mechanical dimensions before integration. Ensure the adhesive backing compatibility matches the target surface material. Confirm that the SMA male connector aligns with the receiving equipment interface requirements.

Antennas RF Selection Notes

Select this component when a low-profile, adhesive-mounted active GPS antenna is required. The 1.575 GHz frequency band targets standard GPS signals. The SMA male connector provides a standard interface option. Consider the 0.500-inch height constraint for vehicle or device enclosures.

Antennas RF Part Context

This part belongs to the Pulse Electronics RF Antenna category, specifically within the UHF frequency group. It is classified as a navigation antenna. The product status is listed as active, indicating ongoing manufacturing support.
