GPSANT1

Antennas RF Overview

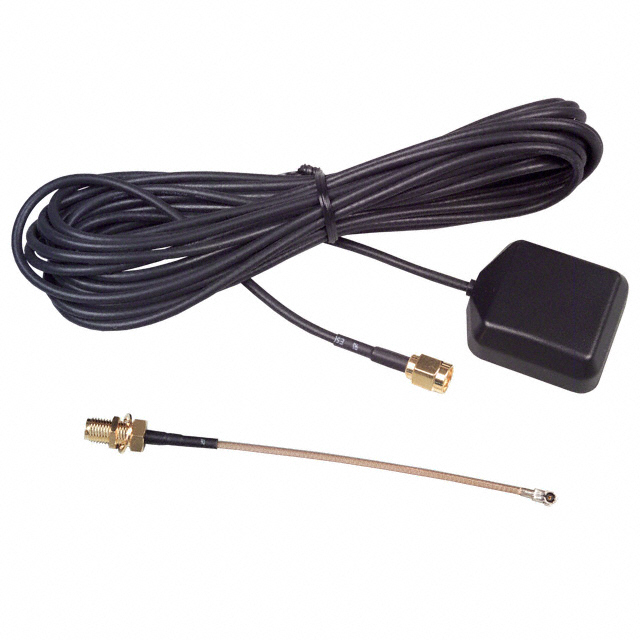

The GPSANT1 is a flat patch RF antenna manufactured by RF Solutions, designed for Global Positioning System applications. It operates within the UHF frequency group, specifically centered at 1.575GHz with a range of 1.525GHz to 1.625GHz. The component features an SMA male connector and is categorized as a single-band antenna. This model provides a dedicated solution for receiving GPS signals in compact electronic designs requiring precise positioning capabilities.

Antennas RF Feature Summary

• Flat patch antenna design optimized for GPS signal reception
• Integrated SMA male connector for standard cable interfacing
• Single-band operation focused on the L1 GPS frequency

Antennas RF Applications

• GPS receiver integration
• Navigation systems
• Positioning modules

Antennas RF Procurement Notes

Verify the specific datasheet version when sourcing, as technical specifications may be updated. Confirm that the SMA male connector polarity matches your system requirements. Ensure the operating frequency range aligns with your target GPS band. Check for any regional distribution restrictions or supply limitations before placing orders.

Antennas RF Selection Notes

Select this model when a low-profile flat patch form factor is required for GPS applications. It is suitable for designs where space constraints prevent the use of larger antennas. The integrated SMA connector simplifies assembly compared to bare PCB traces. Consider the single-band limitation if multi-constellation support beyond GPS is needed.

Antennas RF Part Context

This component belongs to the RF Solutions portfolio of RF antennas and RFID components. It falls under the UHF frequency category, specifically targeting the 1GHz to 2GHz range. The manufacturer specializes in wireless communication solutions, providing various antenna types for different protocol requirements including cellular and GNSS applications.

Antennas RF Replacement Considerations

The APAMPG-130 from Abracon LLC is identified as a substitute option. Verify mechanical dimensions and electrical performance compatibility before replacement.
