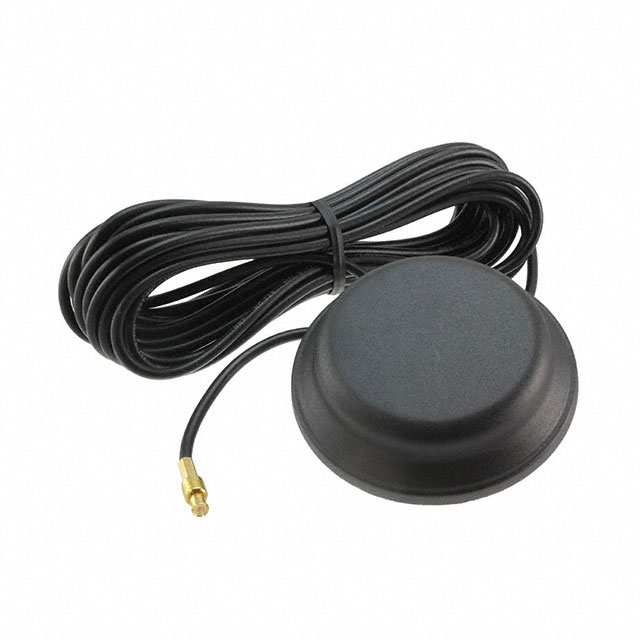

GPSDM02 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Pulse Electronics. Its product description is RF ANT 1.575GHZ DOME MCX CONN. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for GPSDM02
- Description：RF ANT 1.575GHZ DOME MCX CONN
- Series：-
- Mfr：Pulse Electronics
- Package：Bulk
- RF Family/Standard：Navigation
- Frequency Group：UHF (1GHz ~ 2GHz)
- Frequency (Center/Band)：1.575GHz
- Frequency Range：-
- Antenna Type：Dome
- Number of Bands：1
- VSWR：-
- Return Loss：-
- Gain：5dBic
- Features：-
- Termination：MCX
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Adhesive
- Height (Max)：0.700" (17.78mm)
- Applications：GPS
- Power - Max：-
Antennas RF datasheet and documents for GPSDM02
Antennas RF Overview
The Pulse Electronics GPSDM02 is an active GNSS dome antenna designed for direct mounting applications. It operates at the standard L1 frequency of 1.575 GHz, providing a gain of 5 dBic and a noise figure of 28 dB. The unit features an MCX connector and utilizes adhesive for installation. It supports GPS, GLONASS, Galileo, and Beidou constellations. The antenna is rated IP67 for environmental protection and functions within a temperature range of -40°C to +85°C.
Antennas RF Feature Summary
- Active amplification integrated into a compact dome form factor
- Direct permanent mounting via adhesive backing
- Multi-constellation support for global navigation satellite systems
- High ingress protection rating for outdoor durability
Antennas RF Applications
- GPS direct feed installations
- Navigation systems
- Fleet management tracking
- Smart metering utility boxes
Antennas RF Procurement Notes
Verify the specific datasheet version (e.g., W712) on the manufacturer website to confirm exact electrical parameters and mechanical dimensions. Ensure the MCX connector type matches the system interface requirements. Confirm that the adhesive mounting method is suitable for the intended surface material and environmental conditions before finalizing procurement.
Antennas RF Selection Notes
Select this component when a low-profile, permanently mounted solution is required for L1 band reception. The active design compensates for cable loss, making it suitable for longer coaxial runs compared to passive alternatives. Consider the IP67 rating if the deployment environment involves exposure to dust or water jets.
Antennas RF Part Context
This model belongs to the Pulse Electronics outdoor antenna portfolio, specifically categorized under multiprotocol and GNSS solutions. It is part of a series of active antennas designed for robust performance in mobile and fixed tracking applications. The product line emphasizes direct integration capabilities for seamless installation in various electronic enclosures.
Antennas RF Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing RF interfaces and mounting constraints before considering alternative models from other manufacturers.
