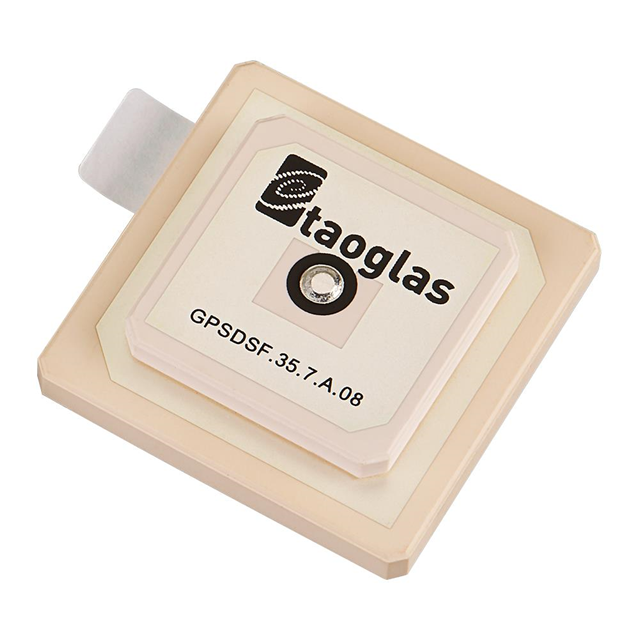

GPSDSF.35.7.A.08

$17.49

Description：GPS L1/GALILEO DUAL PIN STACKED
Series：-
Mfr：Taoglas Limited
Package：Tray,Tray

SKU:238b81f6452b Category: RF Antennas Brand: Taoglas Limited

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

GPSDSF.35.7.A.08 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Taoglas Limited. Its product description is GPS L1/GALILEO DUAL PIN STACKED. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for GPSDSF.35.7.A.08

Description：GPS L1/GALILEO DUAL PIN STACKED
Series：-
Mfr：Taoglas Limited
Package：Tray,Tray
RF Family/Standard：Navigation
Frequency Group：Wide Band
Frequency (Center/Band)：1.575GHz, 1.591GHz, 1.602GHz, 2.338GHz, 2.338GHz
Frequency Range：1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz, 2.332GHz ~ 2.345GHz, 1.588GHz ~ 1.594GHz, 2.335GHz ~ 2.341GHz
Antenna Type：Ceramic Patch
Number of Bands：5
VSWR：-
Return Loss：-10dB
Gain：3.4dBi, 3.6dBi, 4.7dBi
Features：-
Termination：Pin
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Adhesive
Height (Max)：0.281" (7.15mm)
Applications：GALILEO, GLONASS, GPS, SDARS
Power - Max：-

Antennas RF datasheet and documents for GPSDSF.35.7.A.08

GPSDSF.35.7.A.08

Antennas RF Overview

The GPSDSF.35.7.A.08 is a passive ceramic stacked patch antenna designed for GNSS and SDARS applications. It operates at a center frequency of 1.602GHz with a maximum gain of 3.6dBi. The unit features right-hand circular polarization and a 50-ohm input impedance. Physical dimensions are 35mm x 35mm, utilizing adhesive or pin mounting methods.

Antennas RF Feature Summary

Integrates dual-band capabilities for both Global Navigation Satellite Systems (GNSS) and Satellite Digital Audio Radio Service (SDARS).
Constructed using a low-profile ceramic stacked patch design to ensure compact integration within electronic devices.
Provides right-hand circular polarization to maintain signal integrity across varying satellite orientations.

Antennas RF Applications

Satellite navigation systems requiring combined GPS, GLONASS, and Galileo support.
Satellite Digital Audio Radio Service (SDARS) receivers.
Embedded automotive telematics units.
Portable consumer electronics with integrated location services.

Antennas RF Procurement Notes

Verify the specific datasheet version prior to procurement to confirm environmental compliance status and mechanical tolerances. Ensure that the selected mounting method aligns with the target enclosure design constraints. Cross-reference the ECCN classification EAR99 against export control regulations applicable to your region before finalizing purchase orders.

Antennas RF Selection Notes

Select this component when a single antenna solution is required to cover both GNSS frequencies and SDARS bands simultaneously. The 35mm x 35mm footprint suits applications where space is limited but high-performance circular polarization is necessary. Consider the adhesive or pin mounting options based on the structural requirements of the host device chassis.

Antennas RF Part Context

This model belongs to Taoglas Limited's portfolio of embedded RF antennas. It is part of a series of stacked patch antennas engineered for multi-constellation satellite reception. The product line emphasizes low-profile designs suitable for modern mobile and automotive platforms requiring robust global positioning and radio data reception.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Evaluate other models within the same manufacturer's GNSS antenna family if dimensional or performance adjustments are required.
