GPSF.36.7.A.30

Antennas RF Overview

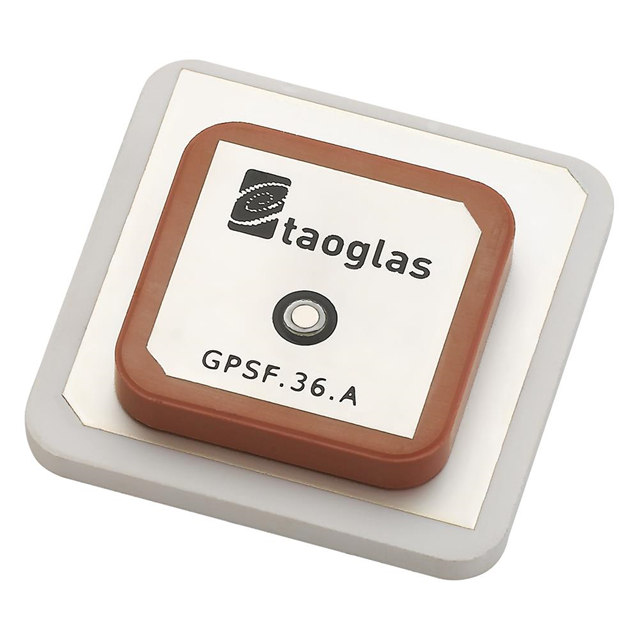

The GPSF.36.7.A.30 is a low-profile, embedded stacked passive patch antenna manufactured by Taoglas Limited. Designed for high-precision navigation applications, it operates on dual GPS bands: L1 at 1.575 GHz and L2 at 1.227 GHz. The component features right-hand circular polarization and utilizes a single feed configuration. It measures 36x36 mm with a height of 7 mm. Gain is specified at 5.44 dBi. Mounting options include adhesive or pin through-hole interfaces.

Antennas RF Feature Summary

• Dual-band operation supporting both L1 and L2 GPS frequencies for enhanced positioning accuracy
• Low axial-ratio design ensuring stable signal reception in challenging environments
• Compact ceramic construction suitable for space-constrained embedded installations

Antennas RF Applications

• High-precision telematics systems
• Unmanned aerial vehicles (drones)
• Navigation equipment requiring dual-frequency support

Antennas RF Procurement Notes

Verify the specific mounting requirement before ordering, as this model supports both adhesive and pin through-hole installation methods. Confirm that the application environment accommodates the 36x36 mm footprint and 7 mm height constraints. Ensure compatibility with L1/L2 frequency requirements rather than single-band solutions. Check for any mechanical interference around the antenna placement area during system integration planning.

Antennas RF Selection Notes

Select this model when dual-frequency GPS accuracy is critical compared to standard single-band alternatives. The stacked patch design offers superior performance over simple ceramic patches. Consider the physical dimensions carefully as the 36x36 mm size may limit placement options in compact devices. Verify that the host device can support the required impedance matching for optimal gain performance.

Antennas RF Part Context

This component belongs to the GPSF.36 series from Taoglas Limited, which focuses on GNSS solutions. It represents a specialized variant within their portfolio designed specifically for dual-band L1/L2 operations. The series emphasizes low profile and robust construction for demanding mobile and stationary navigation applications.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Users should consult official manufacturer resources for current equivalent models if this specific variant is discontinued or unavailable.
