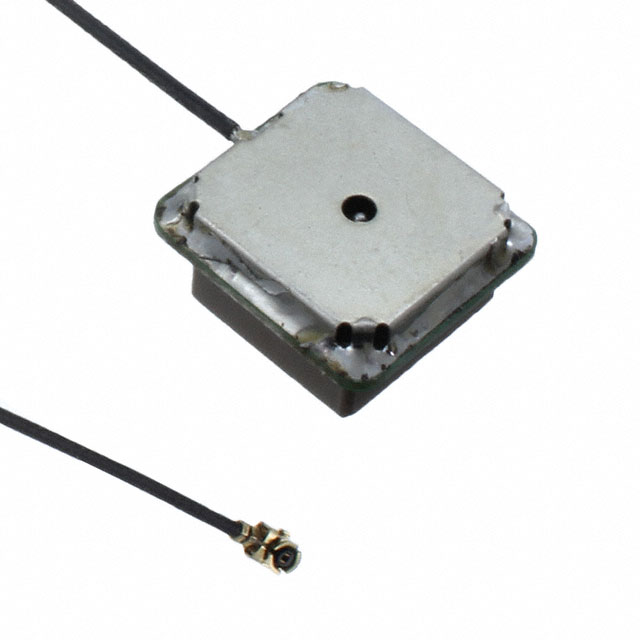

GPSGB1330 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Pulse Electronics. Its product description is RF ANT 1.575/1.602GHZ CER PATCH. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for GPSGB1330
- Description：RF ANT 1.575/1.602GHZ CER PATCH
- Series：-
- Mfr：Pulse Electronics
- Package：Tray
- RF Family/Standard：Navigation
- Frequency Group：UHF (1GHz ~ 2GHz)
- Frequency (Center/Band)：1.575GHz, 1.602GHz
- Frequency Range：-
- Antenna Type：Ceramic Patch
- Number of Bands：2
- VSWR：2
- Return Loss：-
- Gain：1dBic
- Features：LNA
- Termination：U.FL (UMCC), I-PEX MHF1
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- Height (Max)：0.321" (8.15mm)
- Applications：GPS
- Power - Max：-
Antennas RF datasheet and documents for GPSGB1330
Antennas RF Overview
The GPSGB1330 is a ceramic patch GNSS antenna manufactured by Pulse Electronics, designed for surface mount applications. It supports GPS, GLONASS, Beidou, Compass, and Galileo navigation systems. The component operates at center frequencies of 1.57542 GHz and 1.602 GHz with an IPEX MHF connector termination. Key electrical specifications include a VSWR of 1.5:1 and right-hand circular polarization (RHCP). The unit features adhesive mounting and measures 13x13 mm.
Antennas RF Feature Summary
- Supports multi-constellation GNSS including GPS, GLONASS, Beidou, and Galileo
- Compact ceramic patch design suitable for space-constrained PCB layouts
- Integrated U.FL/IPEX MHF connector for direct RF interface
Antennas RF Applications
- Portable headsets
- Automotive navigation systems
- Tracking devices
- Positioning modules
Antennas RF Procurement Notes
Verify the specific datasheet revision and RoHS compliance status directly with Pulse Electronics or authorized distributors before procurement. Confirm that the IPEX MHF connector mating requirements align with the target system's cable assembly specifications to ensure reliable signal integrity.
Antennas RF Selection Notes
Select this component when a low-profile, multi-band GNSS solution is required for portable or automotive electronics. The integrated connector simplifies assembly compared to bare patch antennas. Ensure the application environment does not require high-power handling, as this is a passive receiving antenna optimized for navigation signals.
Antennas RF Part Context
This part belongs to Pulse Electronics' GPSMOD series of active and passive GNSS components. It complements other vehicle-mounted and outdoor dome antennas in the portfolio by providing a compact PCB-integrated alternative for consumer and industrial tracking devices requiring global satellite coverage.
Antennas RF Replacement Considerations
The GPSGB1330 serves as a direct replacement for legacy Pulse GPSMB501 variants where surface mount form factors are preferred over magnetic mounts. Verify mechanical footprint compatibility and connector type when substituting into existing designs.
