GPSGB2515

$15.62

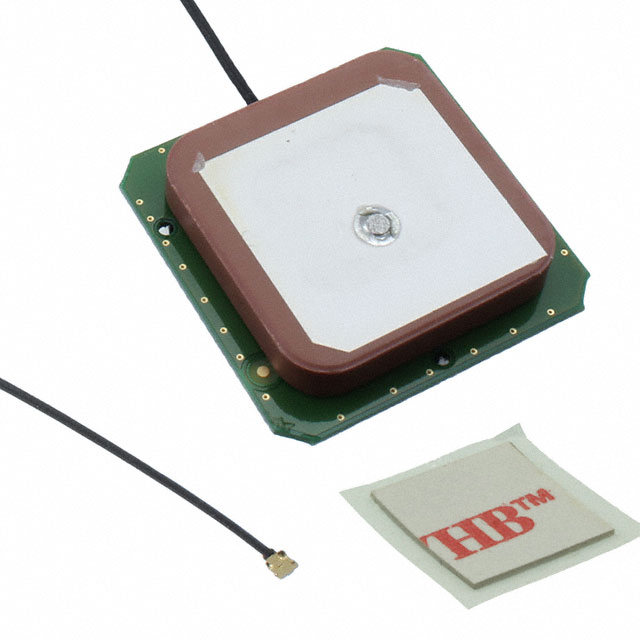

Description：RF ANT 1.561/1.575GHZ CER PATCH
Series：-
Mfr：Pulse Electronics
Package：Bulk

SKU:1ca101516fb2 Category: RF Antennas Brand: Pulse Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

GPSGB2515 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Pulse Electronics. Its product description is RF ANT 1.561/1.575GHZ CER PATCH. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for GPSGB2515

Description：RF ANT 1.561/1.575GHZ CER PATCH
Series：-
Mfr：Pulse Electronics
Package：Bulk
RF Family/Standard：Navigation
Frequency Group：UHF (1GHz ~ 2GHz)
Frequency (Center/Band)：1.561GHz, 1.575GHz, 1.602GHz
Frequency Range：-
Antenna Type：Ceramic Patch
Number of Bands：3
VSWR：2
Return Loss：-
Gain：1dBic
Features：-
Termination：U.FL (UMCC), I-PEX MHF1
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Surface Mount
Height (Max)：0.321" (8.15mm)
Applications：Beidou, Galileo, GLONASS, GNSS, GPS
Power - Max：-

Antennas RF datasheet and documents for GPSGB2515

GPSGB2515

Antennas RF Overview

The GPSGB2515 is an active GNSS ceramic patch antenna manufactured by Pulse Electronics. It supports GPS, GLONASS, Galileo, and Beidou constellations within a frequency range of 1561.098 MHz to 1602.56 MHz. The component features a 1 dBi gain and operates between -40°C and +85°C. It utilizes a U.FL (UMCC) or I-PEX MHF1 connector for surface mount installation.

Antennas RF Feature Summary

Supports multi-mode GNSS reception including GPS, GLONASS, Galileo, and Beidou
Active internal design with ceramic patch construction
Compact surface mount form factor suitable for embedded integration

Antennas RF Applications

Global Navigation Satellite System receivers
Telematics tracking devices
Mobile location-based services
IoT navigation modules

Antennas RF Procurement Notes

Verify the specific connector variant required, as the part may be available with U.FL or I-PEX MHF1 terminations. Confirm RoHS compliance status through official documentation prior to ordering. Ensure the active circuitry requirements align with the system power budget. Cross-reference the datasheet for precise mechanical dimensions to validate PCB footprint compatibility.

Antennas RF Selection Notes

Select this model for applications requiring compact, multi-constellation GNSS performance in harsh environments. The active design ensures reliable signal acquisition across supported bands. Surface mount packaging facilitates automated assembly processes. Verify that the operating temperature range meets the deployment conditions.

Antennas RF Part Context

This component belongs to Pulse Electronics' portfolio of RF antennas and wireless solutions. As a Technitrol Company product, it adheres to industry standards for navigation hardware. The series focuses on providing integrated GNSS capabilities for mobile and fixed electronic systems requiring precise positioning data.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are documented. Evaluate alternative models based on identical frequency ranges, connector types, and mounting styles when sourcing replacements.
