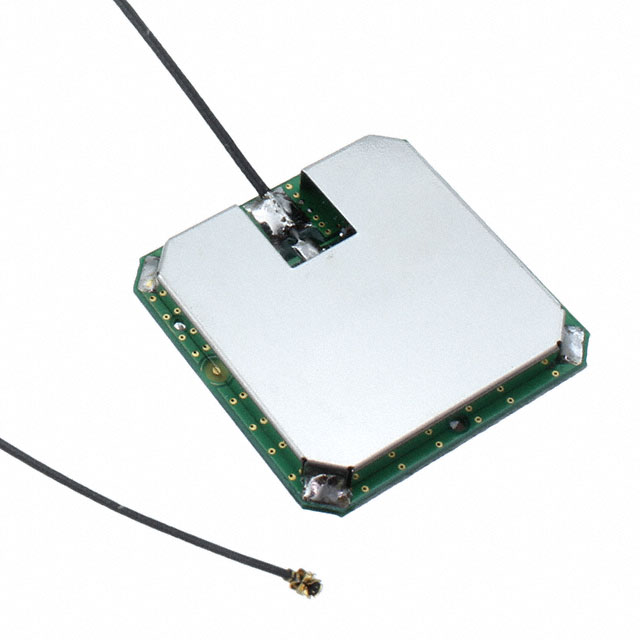

GPSGB2530 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Pulse Electronics. Its product description is RF ANT 1.561/1.575GHZ CER PATCH. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for GPSGB2530
- Description：RF ANT 1.561/1.575GHZ CER PATCH
- Series：Internal Active GPS
- Mfr：Pulse Electronics
- Package：Bulk
- RF Family/Standard：Navigation
- Frequency Group：UHF (1GHz ~ 2GHz)
- Frequency (Center/Band)：1.561GHz, 1.575GHz, 1.602GHz
- Frequency Range：-
- Antenna Type：Ceramic Patch
- Number of Bands：3
- VSWR：2
- Return Loss：-
- Gain：1dBic
- Features：-
- Termination：U.FL (UMCC), I-PEX MHF1
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- Height (Max)：0.321" (8.15mm)
- Applications：Beidou, Galileo, GLONASS, GNSS, GPS
- Power - Max：-
Antennas RF datasheet and documents for GPSGB2530
Antennas RF Overview
The GPSGB2530 is an active GNSS ceramic patch antenna manufactured by Pulse Electronics. It supports multiple satellite navigation systems including GPS, GLONASS, Galileo, and Beidou. The unit integrates a Low Noise Amplifier (LNA) and operates within the L4 frequency band, specifically covering 1.561 GHz and 1.575 GHz. It utilizes a U.FL (UMCC) or I-PEX MHF1 connector for surface mount installation.
Antennas RF Feature Summary
- Integrates an internal Low Noise Amplifier (LNA) to enhance signal reception sensitivity.
- Supports multi-mode Global Navigation Satellite System (GNSS) protocols including GPS, GLONASS, Galileo, and Beidou.
- Constructed with a durable ceramic patch design suitable for embedded applications.
Antennas RF Applications
- Global Navigation Satellite System (GNSS) receivers
- Automotive telematics and fleet management units
- Personal locator beacons and tracking devices
Antennas RF Procurement Notes
Verify that the specific procurement order matches the required connector type, as the component may utilize either U.FL (UMCC) or I-PEX MHF1 interfaces depending on the configuration. Confirm RoHS compliance status through official manufacturer documentation prior to integration into environmentally regulated assemblies.
Antennas RF Selection Notes
Select this component when a compact, active solution is required for multi-constellation positioning. The integrated LNA reduces the need for external amplification stages in the RF chain. Ensure the host PCB layout accommodates the surface mount footprint and provides adequate clearance for the connector interface.
Antennas RF Part Context
This model belongs to the Pulse Electronics RF Antenna category, specifically designed for wireless communication and navigation subsystems. It represents a specialized passive-to-active transition in GNSS hardware, offering a complete receive solution rather than just a radiating element.
Antennas RF Replacement Considerations
Consult official distributor databases for verified substitute part numbers from Pulse Electronics or compatible manufacturers. Ensure any replacement maintains identical frequency coverage and connector specifications.
