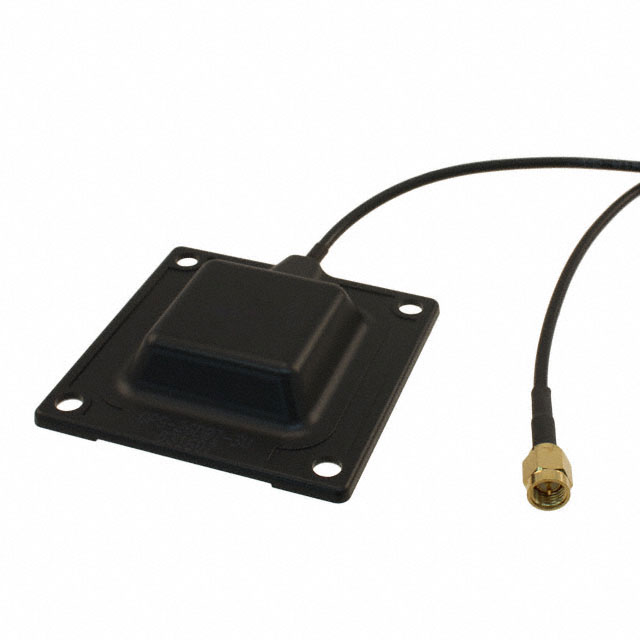

GPSIM15 is listed in the Antennas RF range at ChipApex. The manufacturer field lists TE Connectivity. Its product description is RF ANT 1.575GHZ MOD CAB CHAS MT. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for GPSIM15
- Description：RF ANT 1.575GHZ MOD CAB CHAS MT
- Series：-
- Mfr：TE Connectivity
- Package：Bulk
- RF Family/Standard：Navigation
- Frequency Group：UHF (1GHz ~ 2GHz)
- Frequency (Center/Band)：1.575GHz
- Frequency Range：-
- Antenna Type：Module
- Number of Bands：1
- VSWR：-
- Return Loss：-
- Gain：2.5dBi
- Features：Cable - 1.5m
- Termination：SMA Male
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Chassis Mount
- Height (Max)：0.250" (6.35mm)
- Applications：GPS
- Power - Max：-
Antennas RF datasheet and documents for GPSIM15
Antennas RF Overview
The GPSIM15 is a TE Connectivity RF antenna module designed for Global Positioning System applications. It operates at a center frequency of 1.575GHz within the UHF band, providing a gain of 2.5dBi. The unit features an SMA male connector and includes a 1.5m cable. It is configured for chassis mounting with a maximum height of 0.250 inches (6.35mm). This navigation-standard component is currently listed as obsolete.
Antennas RF Feature Summary
- Integrated RF antenna module optimized for GPS signal reception
- Includes integrated 1.5-meter connecting cable
- Designed for secure chassis mounting installation
Antennas RF Applications
- GPS navigation systems
- Telematics data collection units
- Vehicle tracking devices
Antennas RF Procurement Notes
This component is officially marked as obsolete by the manufacturer. Procurement must verify availability through secondary market channels or authorized distributors holding remaining stock. Confirm end-of-life status and final shipment dates before initiating orders to ensure supply chain continuity for existing designs.
Antennas RF Selection Notes
Select this model only if legacy compatibility with the specific 1.575GHz frequency and SMA male interface is required. Evaluate alternative active or passive antennas from the same manufacturer family that offer current production status and similar mounting profiles to maintain design consistency while ensuring long-term supply security.
Antennas RF Part Context
The GPSIM15 belongs to TE Connectivity’s portfolio of telematics and navigation antennas. It serves as a specialized component for integrating satellite positioning capabilities into mobile platforms. As part of the broader RF antenna category, it supports critical location-based services requiring reliable signal acquisition in dynamic environments.
Antennas RF Replacement Considerations
No direct public substitute part numbers are confirmed for this obsolete component. Engineers should consult TE Connectivity technical support for equivalent modern replacements that match the electrical specifications and mechanical footprint requirements.
