GPSL1-TMG-SPI-40N

$129.06

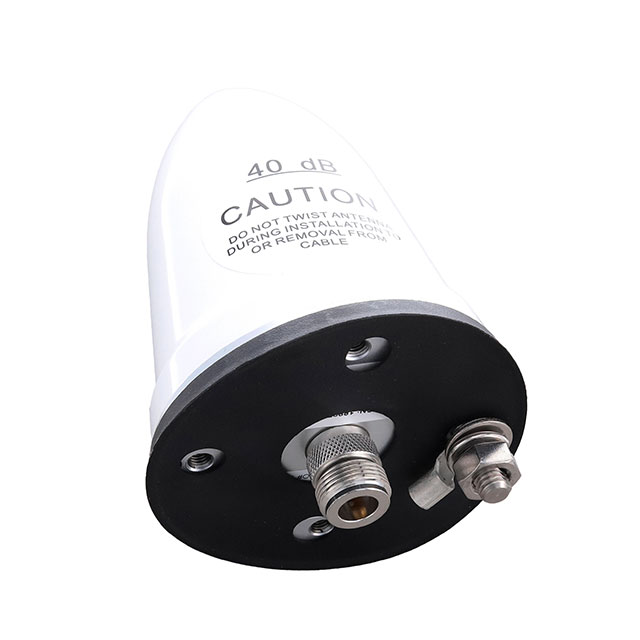

Description：RF ANT 1.575GHZ DOME PANEL MNT
Series：-
Mfr：Amphenol PCTEL
Package：Box

SKU:f7b012cf2f46 Category: RF Antennas Brand: Amphenol PCTEL

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

GPSL1-TMG-SPI-40N is listed in the Antennas RF range at ChipApex. The manufacturer field lists Amphenol PCTEL. Its product description is RF ANT 1.575GHZ DOME PANEL MNT. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for GPSL1-TMG-SPI-40N

Description：RF ANT 1.575GHZ DOME PANEL MNT
Series：-
Mfr：Amphenol PCTEL
Package：Box
RF Family/Standard：Navigation
Frequency Group：UHF (1GHz ~ 2GHz)
Frequency (Center/Band)：1.575GHz
Frequency Range：1.565GHz ~ 1.585GHz
Antenna Type：Dome
Number of Bands：1
VSWR：1.5
Return Loss：-
Gain：3.5dBic
Features：-
Termination：-
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Panel Mount
Height (Max)：7.244" (184.00mm)
Applications：GPS
Power - Max：-

Antennas RF datasheet and documents for GPSL1-TMG-SPI-40N

GPSL1-TMG-SPI-40N

Antennas RF Overview

The GPSL1-TMG-SPI-40N is a dome-style RF antenna manufactured by Amphenol PCTEL, designed for Global Positioning System applications. It operates at a center frequency of 1.575GHz with a bandwidth range of 1.565GHz to 1.585GHz. The component features an SMA connector and utilizes panel mount installation. It provides a gain of 3.5dBic and maintains a Voltage Standing Wave Ratio (VSWR) of 1.5. The maximum height of the unit is 4.961 inches (126.00mm).

Antennas RF Feature Summary

Dome design optimized for GPS signal reception.
Integrated Low Noise Amplifier (LNA) and filtering capabilities.
Panel mount configuration for secure installation.

Antennas RF Applications

Time synchronization systems
Commercial tracking solutions
Precision navigation equipment

Antennas RF Procurement Notes

Verify the specific suffix 'SPI' against official Amphenol PCTEL documentation to confirm interface and mounting specifications. Confirm lead times directly with authorized distributors as manufacturing schedules may vary. Ensure environmental ratings meet project requirements prior to ordering.

Antennas RF Selection Notes

Select this model when precise time synchronization or high-accuracy navigation is required. The integrated LNA enhances sensitivity for weak satellite signals. Verify that the SMA connector type matches existing system interfaces before integration.

Antennas RF Part Context

This component belongs to the GPS timing antenna series from Amphenol PCTEL. These antennas are engineered for robust performance in demanding environments. The product line supports various global navigation satellite systems including GPS, GLONASS, and Galileo.
