GPSLPMB403

Antennas RF Overview

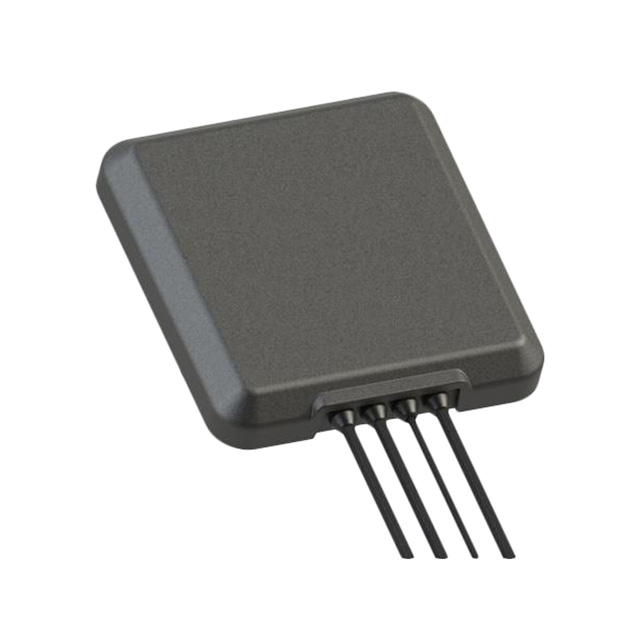

The GPSLPMB403 is a low-profile vehicular RF antenna module by Pulse Electronics, designed for multiband cellular and navigation applications. It operates across three frequency ranges: 698MHz to 960MHz, 1.71GHz to 2.69GHz, and 4.9GHz to 5.9GHz. The unit provides a gain of 5.4dBi with a maximum VSWR of 2.2. It features an adhesive installation type and includes four connector options: RP-SMA male, RP-TNC male, SMA male, and TNC male, each attached via 600mm cables. The device supports Beidou, Galileo, GLONASS, GPS, LTE, and Wi-Fi protocols.

Antennas RF Feature Summary

• Multiband support for LTE, GNSS, and Wi-Fi protocols
• Low-profile adhesive mounting design for vehicular use
• Multiple connector configurations including RP-SMA, RP-TNC, SMA, and TNC
• IP67 ingress protection rating

Antennas RF Applications

• Vehicular LTE connectivity
• Global Navigation Satellite System (GNSS) positioning
• Wi-Fi data transmission in mobile environments

Antennas RF Procurement Notes

Verify the specific connector configuration required for your application, as the datasheet lists multiple termination types including RP-SMA, RP-TNC, SMA, and TNC males. Confirm that the adhesive mounting method aligns with your vehicle surface requirements. Ensure compatibility with the supported frequency bands for LTE and GNSS operations before integration.

Antennas RF Selection Notes

Select this model when a compact, low-profile antenna is needed for vehicles supporting multiple wireless standards. It is suitable for designs requiring simultaneous LTE, Wi-Fi, and GNSS functionality. The IP67 rating makes it appropriate for outdoor or harsh environmental conditions where weather resistance is critical for long-term reliability.

Antennas RF Part Context

This component belongs to the Jaguar series of external antennas from Pulse Electronics. It is categorized under RF antennas specifically engineered for cellular, navigation, and WiFi applications. The product is currently active and compliant with RoHS3 standards, indicating its suitability for modern electronic manufacturing regulations.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify mechanical fitment and electrical specifications against existing inventory if direct replacement is necessary.
