GPSLX09U8W-S6-07-B

$32.97

Description：GPS L1L2E5BL 3.0~5.0 V SMA PLUG
Series：-
Mfr：INPAQ Technology Co., Ltd
Package：Bag

SKU:fe6d4eca65c2 Category: RF Antennas Brand: INPAQ Technology Co., Ltd

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

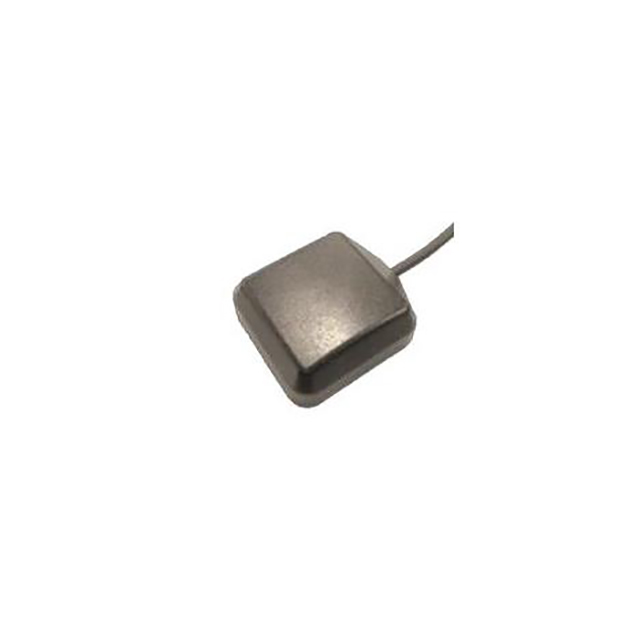

GPSLX09U8W-S6-07-B is listed in the Antennas RF range at ChipApex. The manufacturer field lists INPAQ Technology Co., Ltd. Its product description is GPS L1L2E5BL 3.0~5.0 V SMA PLUG. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for GPSLX09U8W-S6-07-B

Description：GPS L1L2E5BL 3.0~5.0 V SMA PLUG
Series：-
Mfr：INPAQ Technology Co., Ltd
Package：Bag
RF Family/Standard：Navigation
Frequency Group：UHF (1GHz ~ 2GHz)
Frequency (Center/Band)：1.241GHz, 1.584GHz
Frequency Range：1.197GHz ~ 1.285GHz, 1.559GHz ~ 1.61GHz
Antenna Type：Module
Number of Bands：2
VSWR：2
Return Loss：-
Gain：5.5dBic, 6.1dBic
Features：Cable - 5m, LNA, Filter
Termination：SMA
Ingress Protection：IPX7
Grade：-
Qualification：-
Mounting Type：Magnetic
Height (Max)：1.091" (27.71mm)
Applications：GPS
Power - Max：1 mW

Antennas RF datasheet and documents for GPSLX09U8W-S6-07-B

GPSLX09U8W-S6-07-B

Antennas RF Overview

The GPSLX09U8W-S6-07-B is a multi-band GNSS antenna manufactured by INPAQ Technology Co., Ltd. It operates within the UHF frequency group, specifically covering the 1GHz to 2GHz range with a center frequency of 1.241 GHz. The component supports L1, L2, and E5B signals and requires an operating voltage between 3.0V and 5.0V. It features an SMA plug interface for connectivity.

Antennas RF Feature Summary

Supports multi-band navigation including L1, L2, and E5B signals
Operates within the UHF frequency group (1GHz ~ 2GHz)
Utilizes an SMA plug connector interface

Antennas RF Applications

GNSS receiver integration
Navigation systems requiring L1/L2/E5B support
UHF band signal reception equipment

Antennas RF Procurement Notes

Verify the specific SMA plug configuration and voltage requirements against system schematics. Confirm that the 1.241 GHz center frequency aligns with the target application's signal processing capabilities. Ensure compatibility with the 3.0V to 5.0V operating range before integration into the final design.

Antennas RF Selection Notes

Select this model when multi-band L1, L2, and E5B coverage is required within the UHF spectrum. The SMA plug interface dictates mechanical connection standards. Verify that the 1.241 GHz center frequency matches the specific navigation band needs of the project.

Antennas RF Part Context

INPAQ Technology Co., Ltd specializes in GPS antennas and circuit protection components. This part belongs to their navigation antenna family, designed for precise positioning applications. The manufacturer maintains active production status for this specific multi-band component.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Cross-reference with other INPAQ models offering similar UHF specifications if direct substitution is necessary.
