GPSMB501

Antennas RF Overview

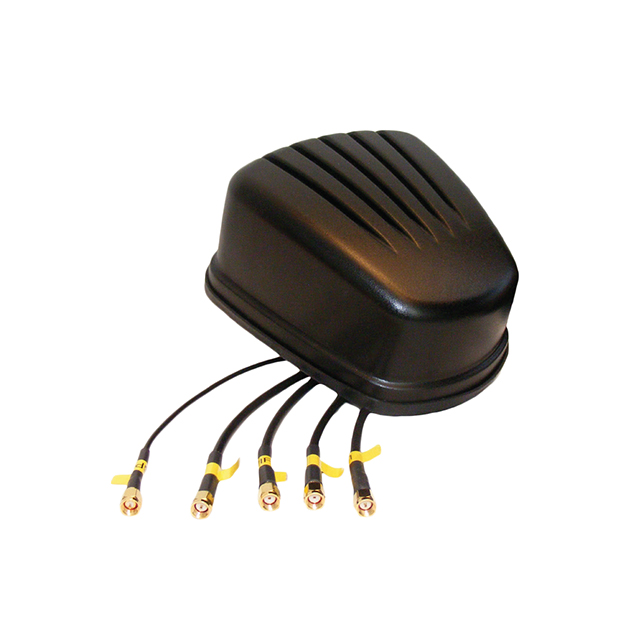

The GPSMB501 is an active multiprotocol vehicle mount antenna module manufactured by Pulse Electronics. It supports GNSS (GPS, GLONASS), Cellular (LTE, NB-IoT), and WiFi (802.11) protocols. The operating frequency range spans from 698 MHz to 5.925 GHz, with center frequencies at 750 MHz, 868 MHz, 900 MHz, 1.57542 GHz, and 1.602 GHz. Key electrical parameters include a gain of 5 dBi, 50 Ohms impedance, and VSWR values of 1.5, 1.4, and 1.6. The unit features an SMA Male connector, IP67 rating, and operates between -40°C and +85°C. Dimensions are 76 mm height, 46.93 mm length, and 6.28 mm width.

Antennas RF Feature Summary

• Supports MIMO LTE and WLAN GNSS protocols for comprehensive connectivity
• Active antenna design with integrated LNA and filter components
• Magnetic mount installation style for flexible vehicle integration

Antennas RF Applications

• Telematics systems
• Fleet management solutions
• Location Based Services (LBS)
• First responder vehicles (ambulance, fire, police)
• Utility vehicles in energy sectors

Antennas RF Procurement Notes

Verify the specific datasheet revision and ordering suffixes when sourcing, as variations may exist within the product line. Confirm that the SMA Male connector type matches the host equipment interface requirements. Ensure the magnetic mount base is suitable for the target vehicle surface material. Check compliance documentation such as RoHS status against project specifications. Validate environmental ratings for the intended operational temperature range.

Antennas RF Selection Notes

Select this model for applications requiring simultaneous GNSS, cellular, and Wi-Fi reception on a single vehicle-mounted unit. The active design provides necessary gain for reliable signal acquisition in mobile environments. Consider the IP67 rating for outdoor exposure durability. The magnetic mounting option allows for non-permanent installation compared to panel-mount alternatives. Verify compatibility with existing RF cabling and connector types before finalizing the component choice.

Antennas RF Part Context

This component belongs to the MiMo LTE, MiMo WiFi, and GNSS Vehicle Mount Antenna Series by Pulse Electronics. It is categorized under Multiprotocol Antennas and specifically designed for vehicle applications. The series includes variants like GPSMB501C and GPSMB502, which may differ in color or minor physical attributes but share core functional capabilities for multi-band wireless communication.

Antennas RF Replacement Considerations

The GPSLPMB4 is listed as a related alternative in official reference guides. Verify if the LPMB4 variant meets the specific frequency and protocol requirements of the current design. Cross-reference connector types and mounting styles to ensure mechanical compatibility during substitution.
