GPSMOD1315

Antennas RF Overview

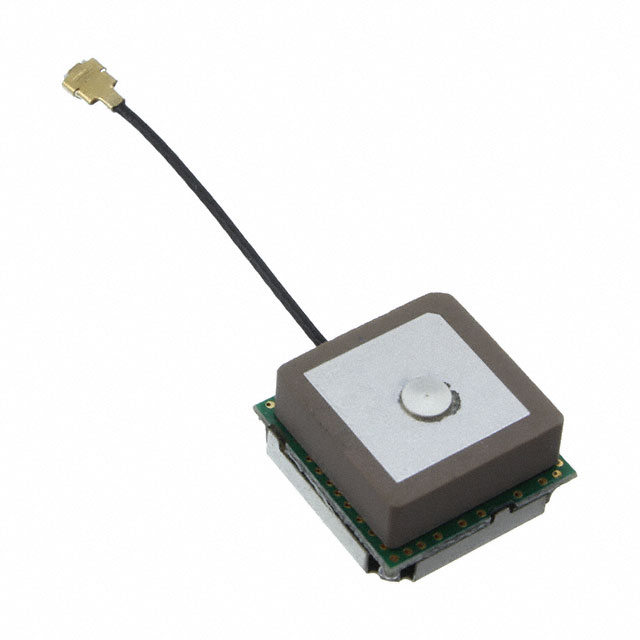

The GPSMOD1315 is an active GPS ceramic patch antenna manufactured by Pulse Electronics. It operates at a center frequency of 1575.42 MHz with a gain of 15 dB. The component features a U.FL (UMCC) or I-PEX MHF1 surface mount connector interface and utilizes a direct permanent mounting style. Designed for compact integration, it supports GNSS navigation protocols including GPS and GLONASS.

Antennas RF Feature Summary

• Active internal low-noise amplifier integrated within the ceramic patch structure
• Surface-mount design with U.FL or I-PEX MHF1 connector options
• Supports multi-constellation GNSS signals including GPS and GLONASS

Antennas RF Applications

• Navigation systems
• Fleet management tracking
• Location-based services

Antennas RF Procurement Notes

Verify the specific connector variant required during procurement, as the part may be available with either U.FL or I-PEX MHF1 interfaces. Confirm that the active LNA specifications align with system power constraints. Ensure the surface-mount footprint matches the target PCB layout to guarantee mechanical stability and electrical performance.

Antennas RF Selection Notes

Select this model when space-constrained designs require an active GPS solution with high gain. The ceramic patch construction offers durability compared to wire alternatives. Consider the integrated LNA for improved sensitivity in weak signal environments. Verify compatibility with the chosen RF connector type before finalizing the bill of materials.

Antennas RF Part Context

This component belongs to Pulse Electronics' portfolio of multiprotocol antennas designed for global navigation satellite systems. It addresses the need for reliable positioning in mobile and fixed applications where traditional external antennas are impractical due to size or aesthetic constraints.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are documented for this specific active ceramic patch configuration.
