GRF-V090MP3B-W012

Antennas RF Overview

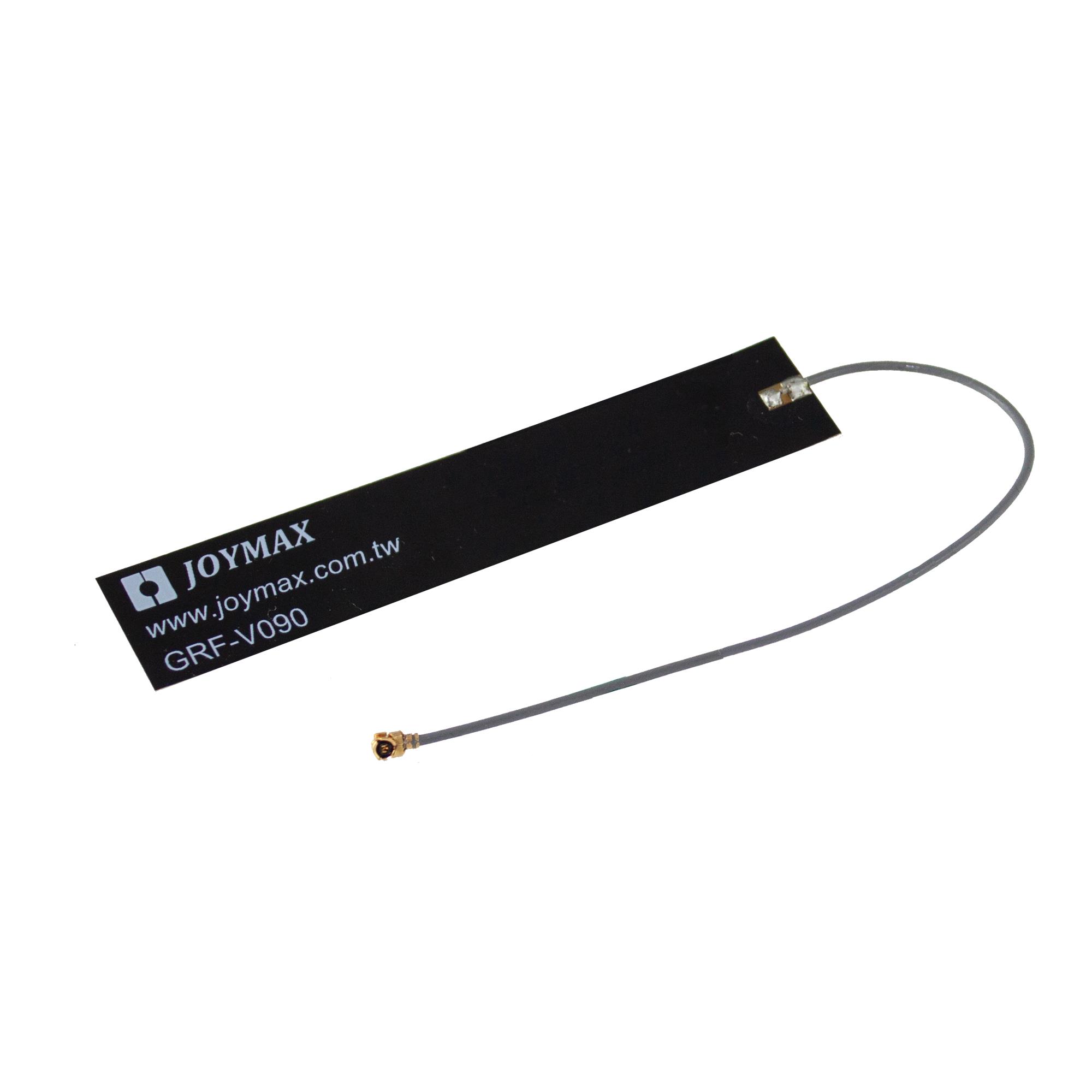

The GRF-V090MP3B-W012 is an RF antenna designed for Sub-1 GHz applications, specifically supporting the 868 MHz and 915 MHz frequency bands. It operates within a frequency range of 862MHz to 876MHz and 902MHz to 930MHz. The component utilizes an adhesive installation type and features an MHF1 connector interface. This part is categorized under UHF frequencies (300MHz ~ 1GHz) and is intended for IoT, ISM, LoRaWAN, LPWA, Sigfox, Weightless-P™, and Wi-Fi HaLow™ systems.

Antennas RF Feature Summary

• Supports multiple Sub-1 GHz protocols including LoRaWAN and Sigfox
• Utilizes adhesive mounting for secure PCB integration
• Features MHF1 connector interface for compact design

Antennas RF Applications

• IoT sensor networks
• LoRaWAN gateways and end devices
• LPWA communication modules
• Sigfox network terminals

Antennas RF Procurement Notes

Verify the specific datasheet version from Joymax Electronics or authorized distributors to confirm mechanical dimensions and impedance characteristics. Ensure the MHF1 connector compatibility with your host board layout. Cross-reference the adhesive specifications for environmental durability requirements before finalizing procurement orders.

Antennas RF Selection Notes

Select this model when designing for Sub-1 GHz ISM bands requiring low profile integration. The adhesive mounting style suits applications where space constraints prevent through-hole or surface-mount soldering. Confirm that the MHF1 connector matches the system's RF trace requirements and that the operating temperature range aligns with the deployment environment.

Antennas RF Part Context

This component belongs to Joymax Electronics' portfolio of wireless antennas tailored for Internet of Things applications. The manufacturer specializes in simplifying RF design for engineers by providing integrated solutions. The GRF series focuses on compact form factors suitable for portable and embedded wireless devices requiring reliable connectivity.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing RF front-end components if considering alternative models from other manufacturers.
