GS1ME-TPS05

Single Diodes Overview

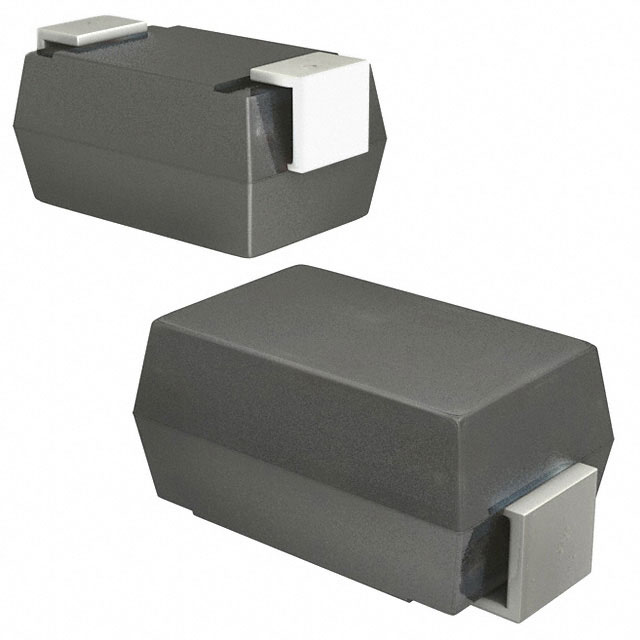

The GS1ME-TPS05 is a silicon rectifier diode manufactured by Micro Commercial Components (MCC). It belongs to the GS1 series of high-efficiency rectifiers designed for general-purpose applications. The component features a maximum average forward rectified current of 1.0 ampere and supports a repetitive peak reverse voltage rating of up to 1000 volts. It utilizes the DO-214AC surface-mount package, commonly known as SMA, ensuring compatibility with automated assembly processes. The device is engineered to provide reliable performance in power supply circuits and other electronic systems requiring efficient AC-to-DC conversion.

Single Diodes Feature Summary

• High efficiency rectification capability for improved power conversion
• Robust construction using silicon material for stable operation
• Surface-mount design compatible with standard SMA packages

Single Diodes Applications

• General-purpose power supply circuits
• AC to DC conversion modules
• Battery charging equipment

Single Diodes Procurement Notes

Verify the specific voltage sub-grade suffix corresponding to the required reverse voltage rating, as the GS1 series spans multiple voltage options. Confirm RoHS compliance status and halogen-free certification requirements against project specifications. Ensure the ordering quantity matches the manufacturer's standard reel or cut-tape packaging formats. Cross-reference the datasheet revision date to confirm the latest electrical characteristics and mechanical dimensions are applied.

Single Diodes Selection Notes

Select this component when a 1.0 ampere current rating and 1000 volt reverse voltage blocking capability are required in a compact surface-mount form factor. Consider the thermal management capabilities inherent to the DO-214AC package for the intended circuit layout. Evaluate the forward voltage drop characteristics relative to system efficiency targets compared to alternative rectifier technologies.

Single Diodes Part Context

This part is part of the broader GS1A through GS1M series from MCC, which covers a range of reverse voltage ratings from 50V to 1000V while maintaining a consistent 1.0A current handling capacity. The series is designed for general-purpose rectification tasks where space constraints favor surface-mount technology over through-hole alternatives.

Single Diodes Replacement Considerations

Direct substitutes include other 1A 1000V SMA-packaged rectifiers such as the 1N5822 equivalent in SMA format or parts from the MUR series if higher speed is needed, though switching characteristics differ. Verify pinout compatibility and thermal resistance values before substituting.
