GS5014 LF

Overview

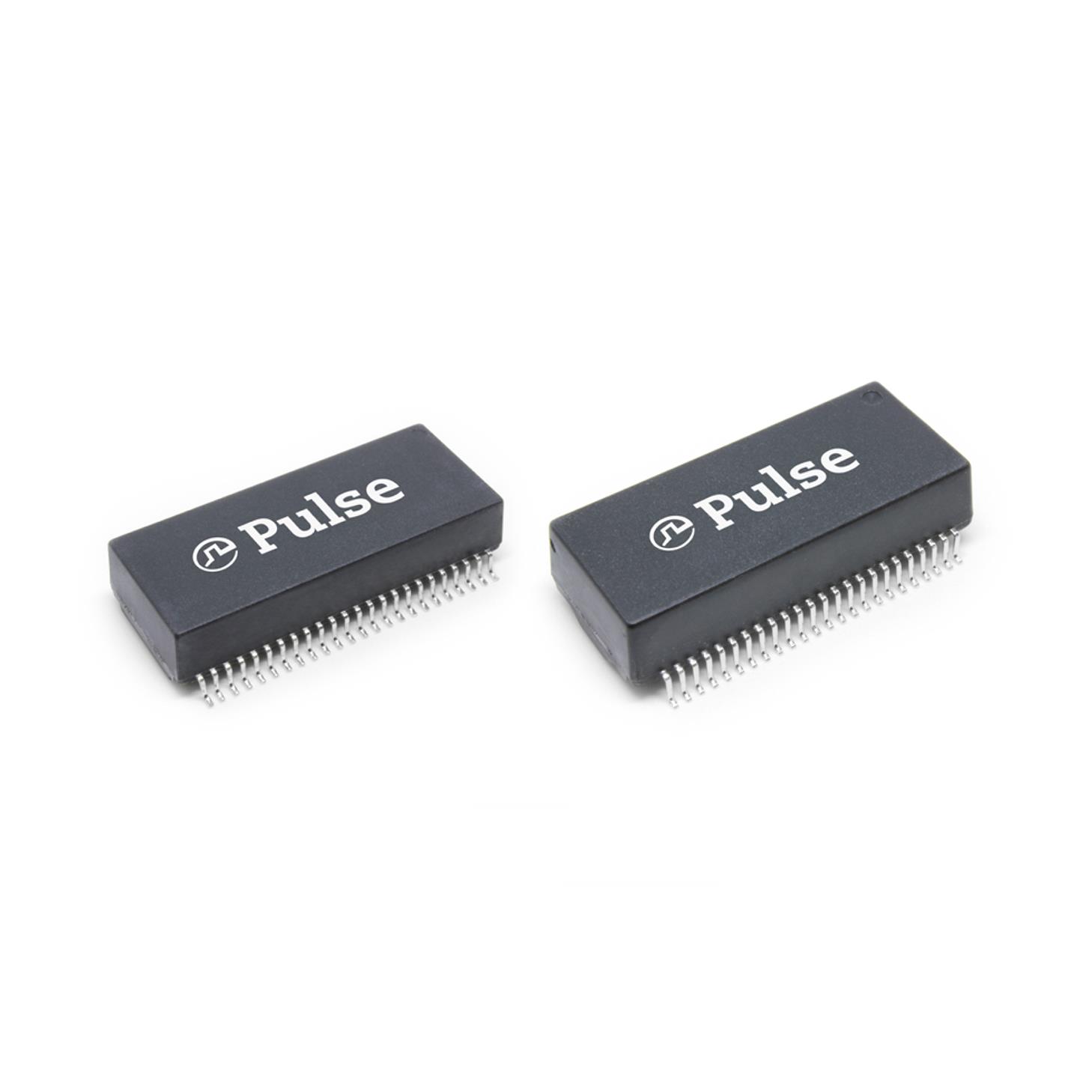

The GS5014 LF is a dual-port LAN discrete module manufactured by Pulse Electronics, designed for Power over Ethernet Plus (PoE+) applications with a 30W power rating. It supports 1 Gigabit data rates and features surface-mount device (SMD) termination. The component provides electrical isolation with an insulation voltage of 4 kVrms. Operating temperatures range from 0°C to +70°C. Physical dimensions are approximately 27.8 mm in length, 15.2 mm in width, and 7.2 mm in height. It belongs to the HB series and is available in tape and reel packaging.

Feature Summary

• Dual-port architecture supporting PoE+ standards
• High isolation voltage capability
• Surface-mount construction for automated assembly

Applications

• 1G Ethernet network interfaces
• PoE+ powered devices
• LAN transformer modules

Procurement Notes

Verify the RoHS compliance status through official documentation before integration. Confirm that the specific suffix or variant matches the required isolation and power specifications. Ensure the manufacturing source is authorized to guarantee component authenticity and traceability. Check for any recent product change notices regarding package or material updates.

Selection Notes

Select this module when dual-channel isolation and PoE+ power delivery are required for 1G Ethernet links. Consider the physical footprint constraints against the specified dimensions. Evaluate thermal performance within the stated operating temperature range. Compare alternative models if different isolation voltages or power budgets are necessary for the specific circuit design.

Part Context

This component is part of Pulse Electronics' LAN transformer portfolio, specifically categorized under audio and signal transformers. It serves as a critical interface for noise suppression and impedance matching in high-speed data transmission lines. The HB series designation indicates its family classification within the manufacturer's discrete module offerings.

Replacement Considerations

GS5014RS3 LF is documented as an alias for this part number.
