Product Detailed Parameters

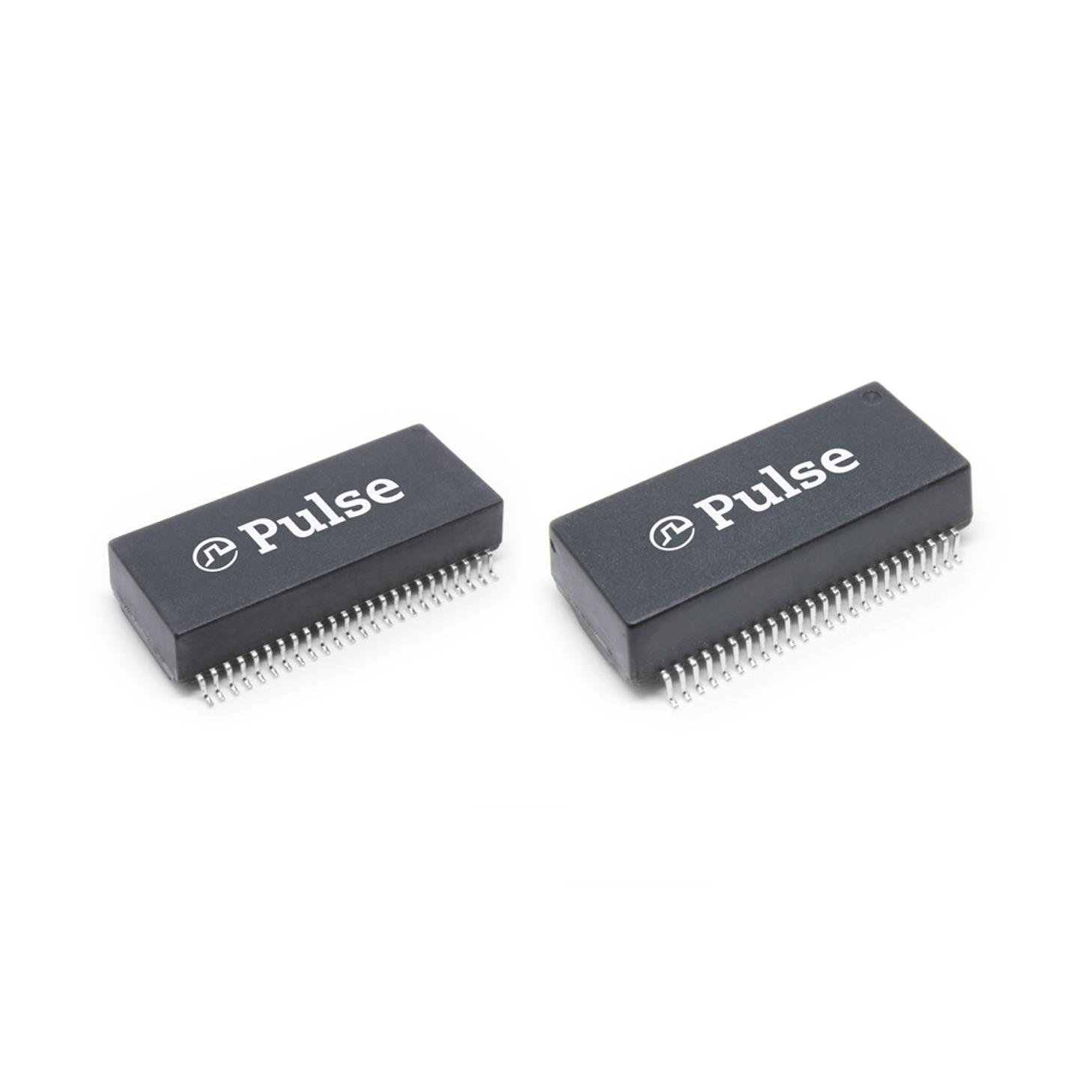

- Description：MDL 1G DUAL PORT 4PAIR POE 60W
- Series：-
- Mfr：Pulse Electronics
- Package：Tape & Reel (TR)
- Transformer Type：LAN 1000 Base-T
- Inductance：350µH
- ET (Volt-Time)：-
- Turns Ratio - Primary:Secondary：1:1CT Transmitter, 1:1CT Receiver
- Mounting Type：Surface Mount
- Size / Dimension：1.094" L x 0.480" W (27.80mm x 12.20mm)
- Height - Seated (Max)：0.283" (7.20mm)
- Operating Temperature：-40°C ~ 85°C
- Grade：-
- Qualification：-
Download product information
Overview
The GS6014RM LF is a LAN discrete module manufactured by Pulse Electronics, designed for 1000 Base-T applications. It features a dual-port configuration with four pairs and supports Power over Ethernet (PoE) at 60W. The component utilizes surface mount technology (SMD/SMT) termination. Key electrical specifications include an inductance of 350µH and a turns ratio of 1:1 center-tapped. It provides 4 kVrms isolation voltage and operates within a temperature range of -40°C to +85°C. The physical dimensions are approximately 27.8 mm in length, 15.2 mm in width, and 7.2 mm in height.
Feature Summary
- Supports 60W Power over Ethernet (PoE) functionality
- Dual-port design accommodating four twisted pairs
- High insulation voltage capability for network safety
Applications
- 1000 Base-T network interface circuits
- Power over Ethernet powered devices
- Ethernet switch port interfaces
Procurement Notes
Verify the specific suffix requirements against your bill of materials, as variations may exist. Confirm RoHS compliance status through official documentation prior to integration. Ensure that the surface mount footprint matches your PCB layout constraints. Validate thermal performance within the specified operating temperature range during system design. Cross-reference the manufacturer part number with authorized distributors to ensure authenticity and traceability.
Selection Notes
Select this component for designs requiring integrated PoE support up to 60W in a compact dual-port form factor. Consider the 350µH inductance value for impedance matching in Gigabit Ethernet applications. Evaluate the SMD package size against available board space. Ensure compatibility with the required isolation voltage standards for your network infrastructure. Compare alternative modules if single-port solutions suffice for the application.
Part Context
This component belongs to the LAN Transformers category from Pulse Electronics. It is classified as a LAN Discrete Module intended for signal transformation in high-speed data networks. The product line focuses on providing reliable connectivity solutions for Ethernet standards. It serves as a critical interface between the MAC layer and the physical medium in network hardware.
Replacement Considerations
Public confirmed substitute part numbers include HXB6014HLT. Verify pinout compatibility and electrical parameters before substitution. Check for any differences in packaging or lead time when switching between these models.
