GS6014SM LF

Overview

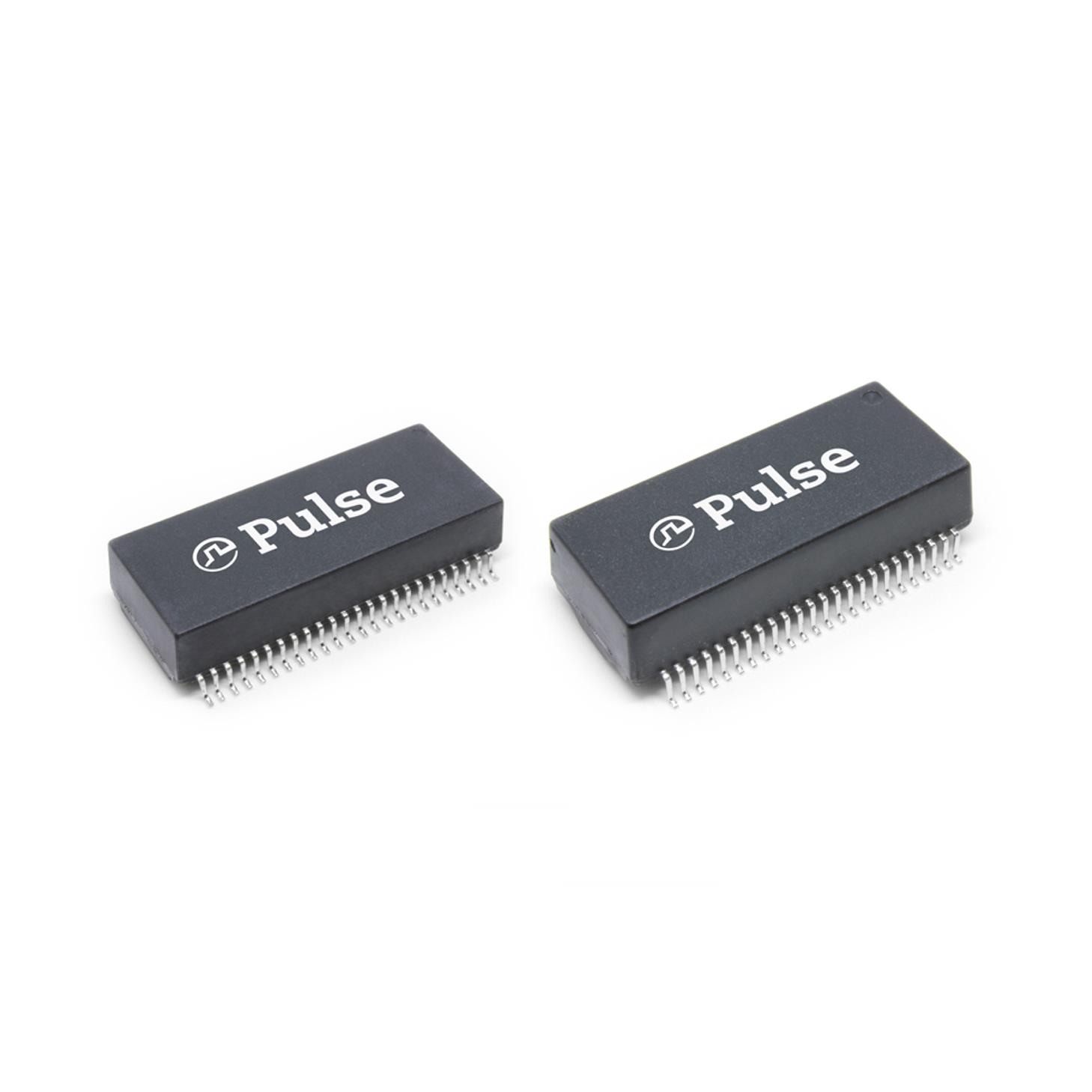

The GS6014SM LF is a LAN discrete module manufactured by Pulse Electronics, designed for high-frequency signal transmission in network applications. This dual-port component supports 1000 Base-T standards with a 1:1 center-tapped configuration for both transmitter and receiver channels. It features a 60W power rating suitable for Power over Ethernet (PoE) implementations across four pairs. The unit utilizes surface mount technology (SMD/SMT) for PCB integration. Key electrical specifications include an inductance of 350µH and a turns ratio of 1:1. The module provides galvanic isolation with a rated insulation voltage of 4 kVrms, ensuring safety and noise immunity in data communication systems.

Feature Summary

• Supports 1000 Base-T Gigabit Ethernet data transmission standards
• Integrated Power over Ethernet (PoE) capability with 60W power rating
• Dual-port architecture with 1:1 center-tapped transformer configuration
• High-voltage isolation protection via 4 kVrms insulation rating

Applications

• Gigabit Ethernet network interface cards
• Power over Ethernet (PoE) powered devices
• Network switches and routers
• Industrial communication gateways

Procurement Notes

Verify the specific ordering suffix to ensure compliance with RoHS directives and lead-free manufacturing requirements as indicated in official documentation. Confirm that the procurement channel sources components directly from authorized distributors or the manufacturer to guarantee authenticity. Check for any specific environmental compliance certifications required for your region. Ensure that storage conditions adhere to moisture sensitivity levels specified in the datasheet prior to soldering. Validate that the received part number matches the exact specification sheet provided by Pulse Electronics.

Selection Notes

Select this component when designing circuits requiring integrated PoE support alongside Gigabit Ethernet connectivity. The dual-port design simplifies board layout for multi-port network interfaces. Consider the physical dimensions and SMT package compatibility with your assembly processes. The 350µH inductance value is critical for meeting impedance matching requirements in 1000 Base-T applications. Evaluate the thermal performance characteristics if operating in high-density environments. Ensure the 4 kVrms isolation voltage meets the safety standards of the end product.

Part Context

This component belongs to the LAN Transformers category within Pulse Electronics' portfolio of audio and signal transformers. It is specifically classified as a LAN Discrete Module intended for network infrastructure equipment. The part serves as a critical interface element between the PHY chip and the external network medium. It replaces older discrete transformer solutions by integrating multiple functions into a single surface-mount package, thereby reducing component count and assembly complexity in modern networking hardware designs.

Replacement Considerations

The part number alias GS5014RS3 LF may be referenced in some documentation; verify functional equivalence before substitution. Cross-reference with other models in the HB series if pinout compatibility is required. Ensure that any replacement maintains the same 1:1 center-tapped configuration and 60W PoE rating. Consult official engineering change notices from Pulse Electronics for any updated versions or lifecycle status changes.
