GS82582D19GE-450I

Memory IC Overview

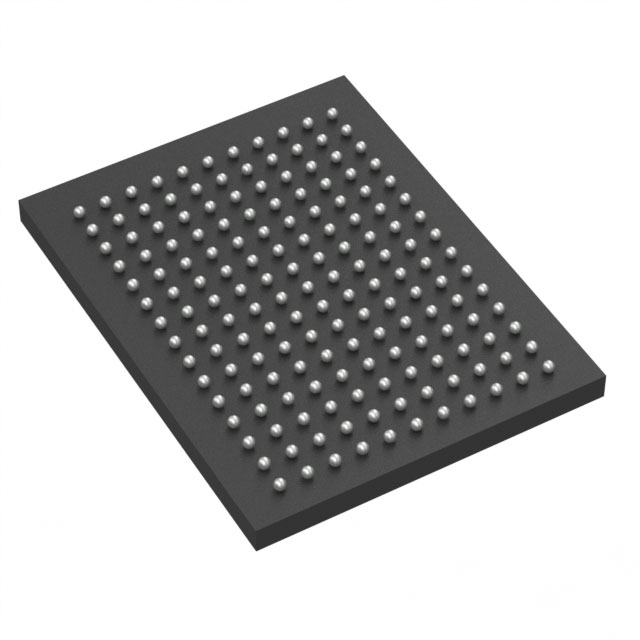

The GS82582D19GE-450I is a synchronous static random-access memory (SRAM) device manufactured by GSI Technology. It features a storage capacity of 288 Mbit organized as 16M x 18 bits. The component supports a maximum clock frequency of 450 MHz and operates with a parallel interface. Power supply requirements range from a minimum of 1.7 V to a maximum of 1.9 V, with a maximum power current of 820 mA. It functions within an operating temperature range of -40°C to +85°C and is housed in a BGA-165 surface-mount package.

Memory IC Feature Summary

• Supports high-speed data transfer via a parallel interface architecture
• Operates on low-voltage power supplies for energy efficiency
• Designed for industrial temperature stability

Memory IC Applications

• High-performance networking equipment
• Telecommunications infrastructure
• Industrial control systems

Memory IC Procurement Notes

Verify the exact part number suffix against official manufacturer documentation to ensure correct voltage and speed grades. Confirm RoHS compliance status through the specific datasheet provided by GSI Technology. Check for moisture sensitivity levels and recommended reflow soldering profiles prior to assembly. Ensure the supplier provides valid traceability documents for quality assurance purposes.

Memory IC Selection Notes

Select this component when a 288 Mbit synchronous SRAM with a 16-bit wide data path is required. The 450 MHz speed grade suits applications demanding high bandwidth. Consider the BGA-165 package constraints for PCB layout. Verify that the system power supply can maintain the 1.7V to 1.9V range under peak load conditions of 820 mA.

Memory IC Part Context

This device belongs to the SigmaDDR-II+ family of synchronous SRAMs from GSI Technology. These components are engineered to maximize bus utilization and provide high-density memory solutions. The series is characterized by its ability to handle large data buffers efficiently in demanding electronic environments.

Memory IC FAQ

What is the memory organization of the GS82582D19GE-450I?

The memory is organized as 16 million words by 18 bits.

Does this component support industrial temperature ranges?

Yes, it is rated for operation between -40°C and +85°C.
